DJI AGRAS T55
Farming, Simplified.
From $31,799 CAD
The Agras T55 is light, intuitive, and easy to get started with. It supports high-application-rate spraying, efficient and precise spreading, and lifting operations. Featuring an upgraded safety system, it is safer with every flight[1]. An innovative Onboard Battery Heat Sink keeps performance steady even in high temperatures. With a cost-effective configuration, it offers excellent value.
50 L Spraying Tank
50 L/min Flow Rate (Mist Sprinklers)
55 kg Spreading Payload
400 kg/min Flow Rate
Lightweight Construction,
Easy to Transport
Smoother Obstacle Bypassing,
Worry-Free Flight
Fully Automatic Operation
Innovative Onboard
Battery Heat Sink
Intuitive and User-Friendly
Beginner-Friendly,
Easy to Start
Ensures convenient transport
The lightweight construction features a new carrying handle, making solo transport easier and improving convenience for vehicle loading and field operations.
Automatic Operation
Fly once around the field boundary and obstacles to generate the operation area in real time. Then, with one click, the drone takes off for automatic operation. It returns home automatically when out of liquid or low on battery.
Terrain Following Without Aerial Mapping
More accurate altitude stabilization and more stable Terrain Following. The Agras T55 can precisely detect terrain relief, allowing standard orchards to carry out Terrain Following operations without aerial mapping, making operation simpler and more efficient.
Spraying System
High Flow Rate,
Strong Penetration
Field Spraying
40L/min Flow Rate
Multi-Atomization Centrifugal Sprinklers ×2 (Standard)
50 - 500μm
4 -11m
50L
Orchard Spraying
50L/min Flow Rate
Rear-Quad Mist Sprinklers ×4 (Optional)
50 - 500μm
50L
Precise Spraying, Outstanding Durability
Spreading System
Efficient and Precise
Large Capacity
The 80 L high-capacity spreading tank meets the needs of operations on small and medium-sized plots.
80 L
High Capacity Spreading Tank
55 kg
Max Payload
High Flow Rate
With a maximum flow rate of 400 kg/min, it delivers highly efficient fertilizer spreading.
400 kg/min
High Flow Rate
10 m
Effective Spreading Width
Precise Dosing, Efficient Spreading
Five Feeder Types
Supports five interchangeable feeder sizes for more precise flow and greater adaptability across seeding, fertilizing, and feeding.

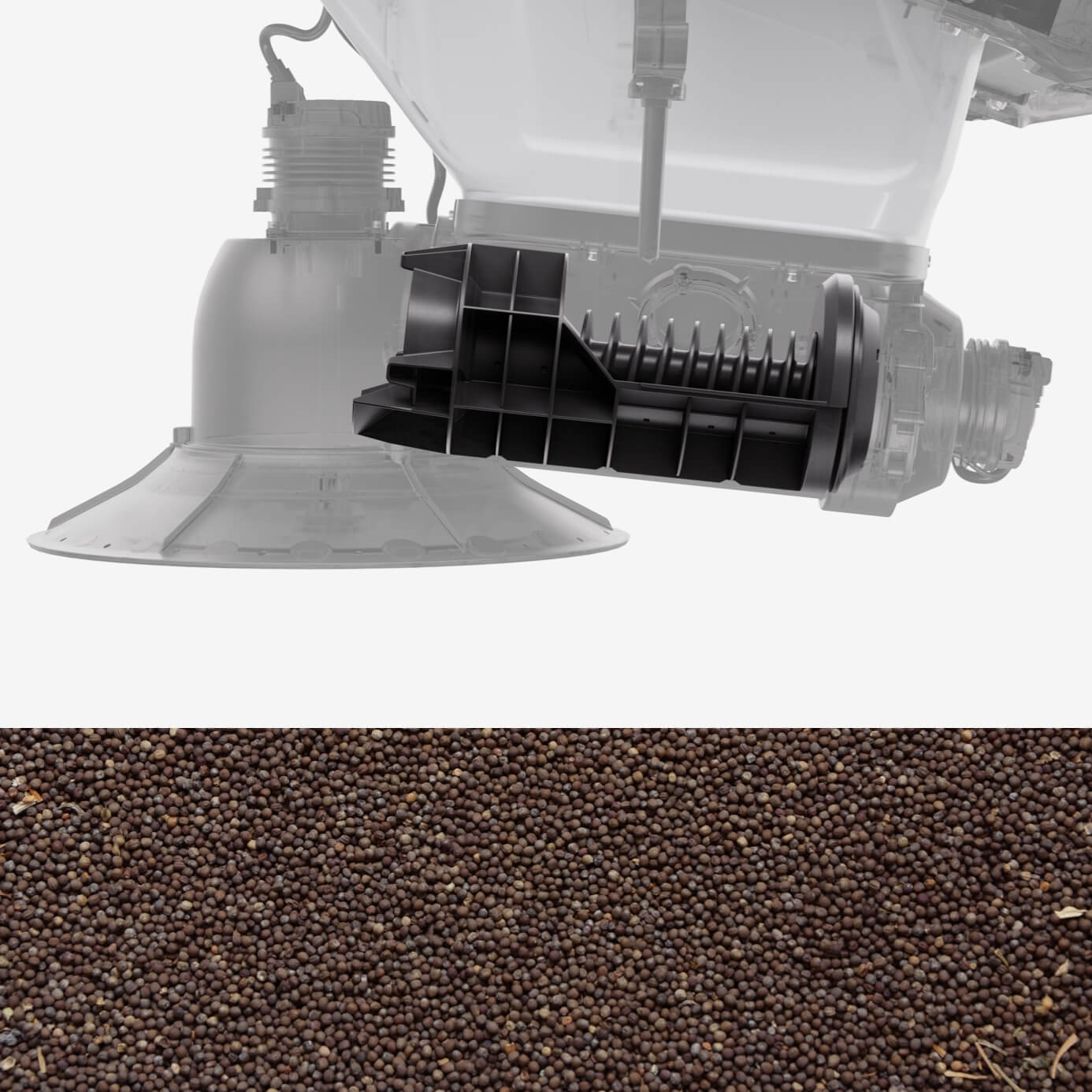

Extra-Large Feeder
Suitable for granulars such as fertilizers, wheat seeds, and feed, etc.
Recommended application rate: 75-750 kg per hectare. Recommended particle size: 0.5-10 mm

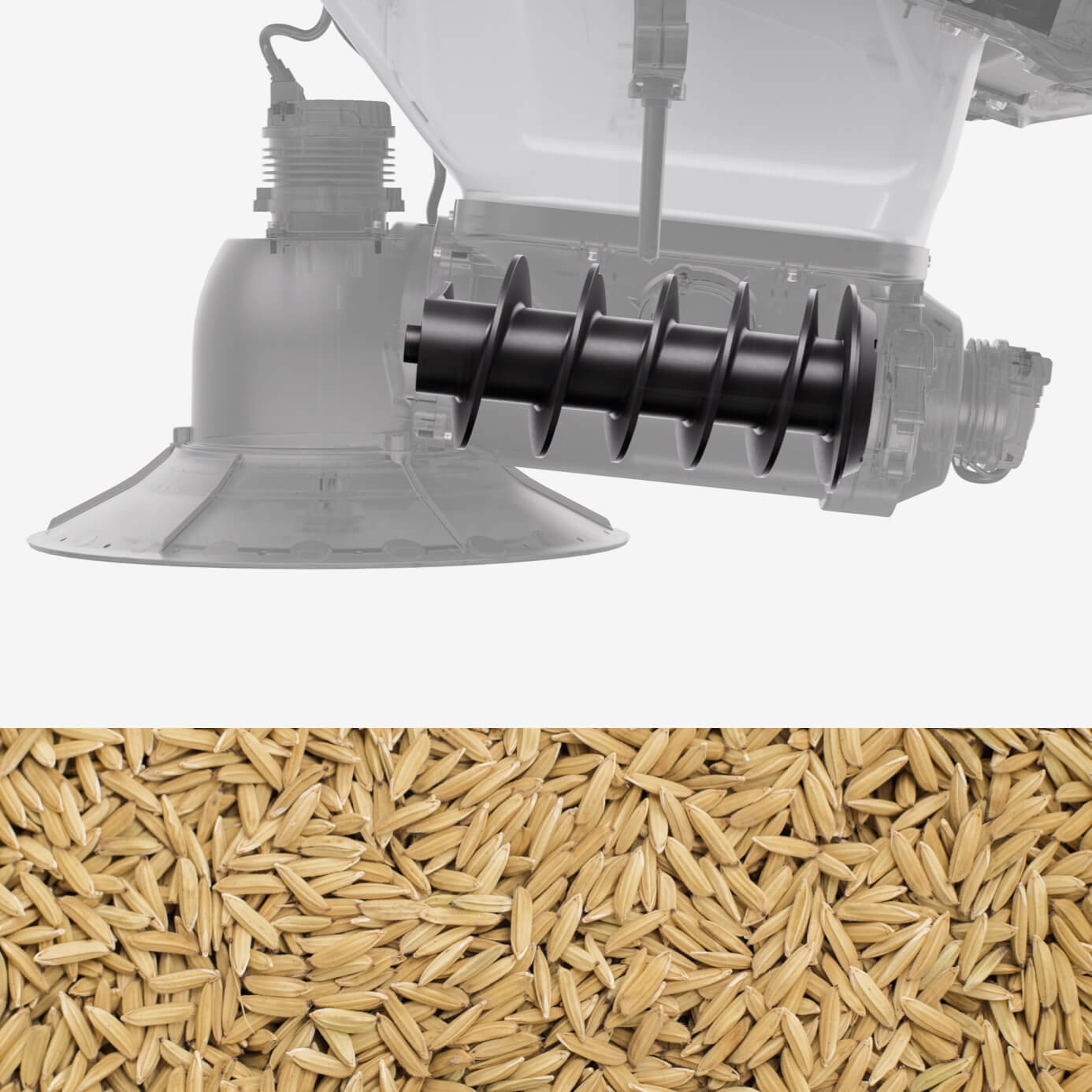

Medium
Feeder
Suitable for granulars such as rice seeds, etc.
Recommended application rate: 22.5-120 kg per hectare. Recommended particle size: 4-6 mm

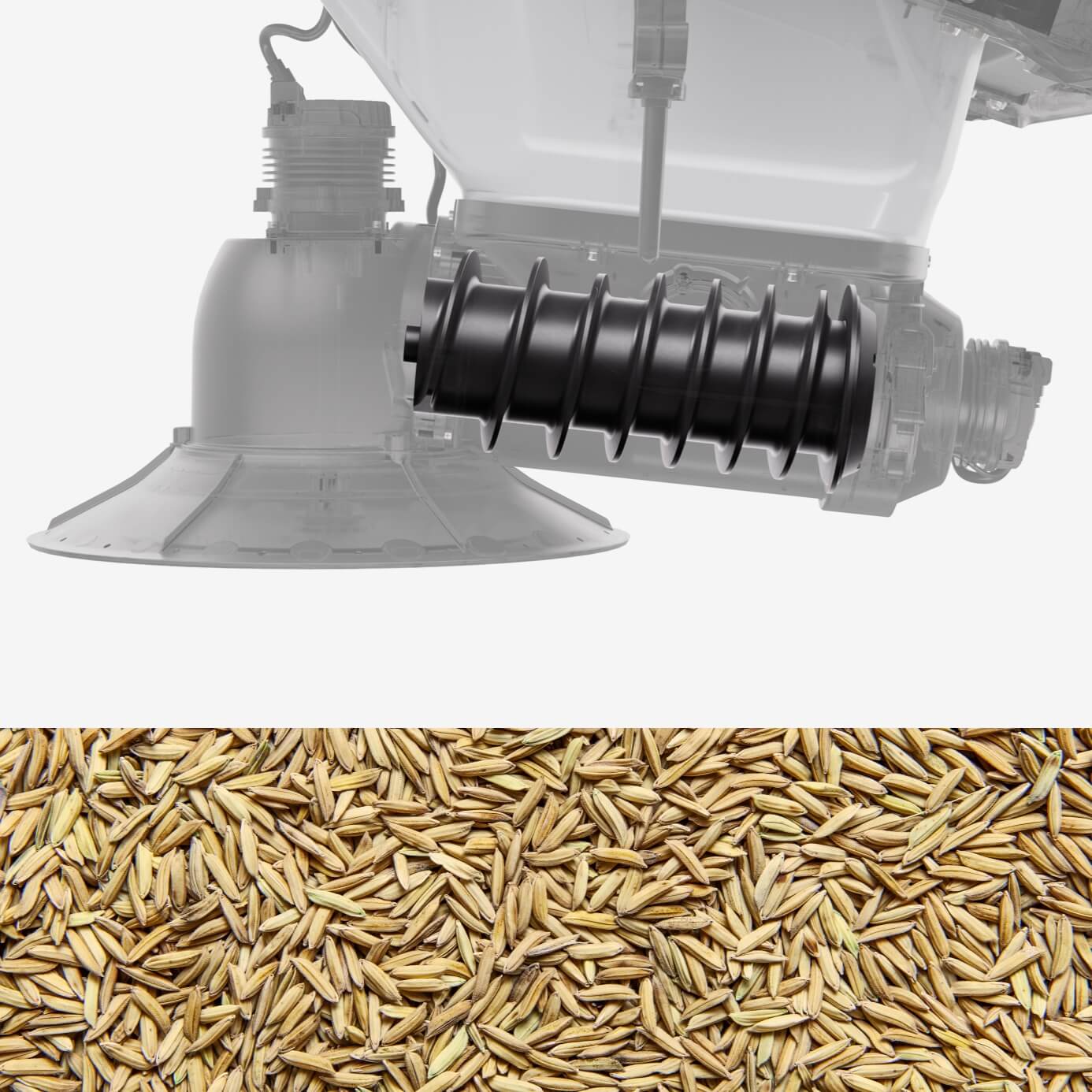

Large Feeder (Optional)
Suitable for granulars such as rice seeds, fertilizers, etc.
Recommended application rate: 75-270 kg per hectare. Recommended particle size: 4-10 mm

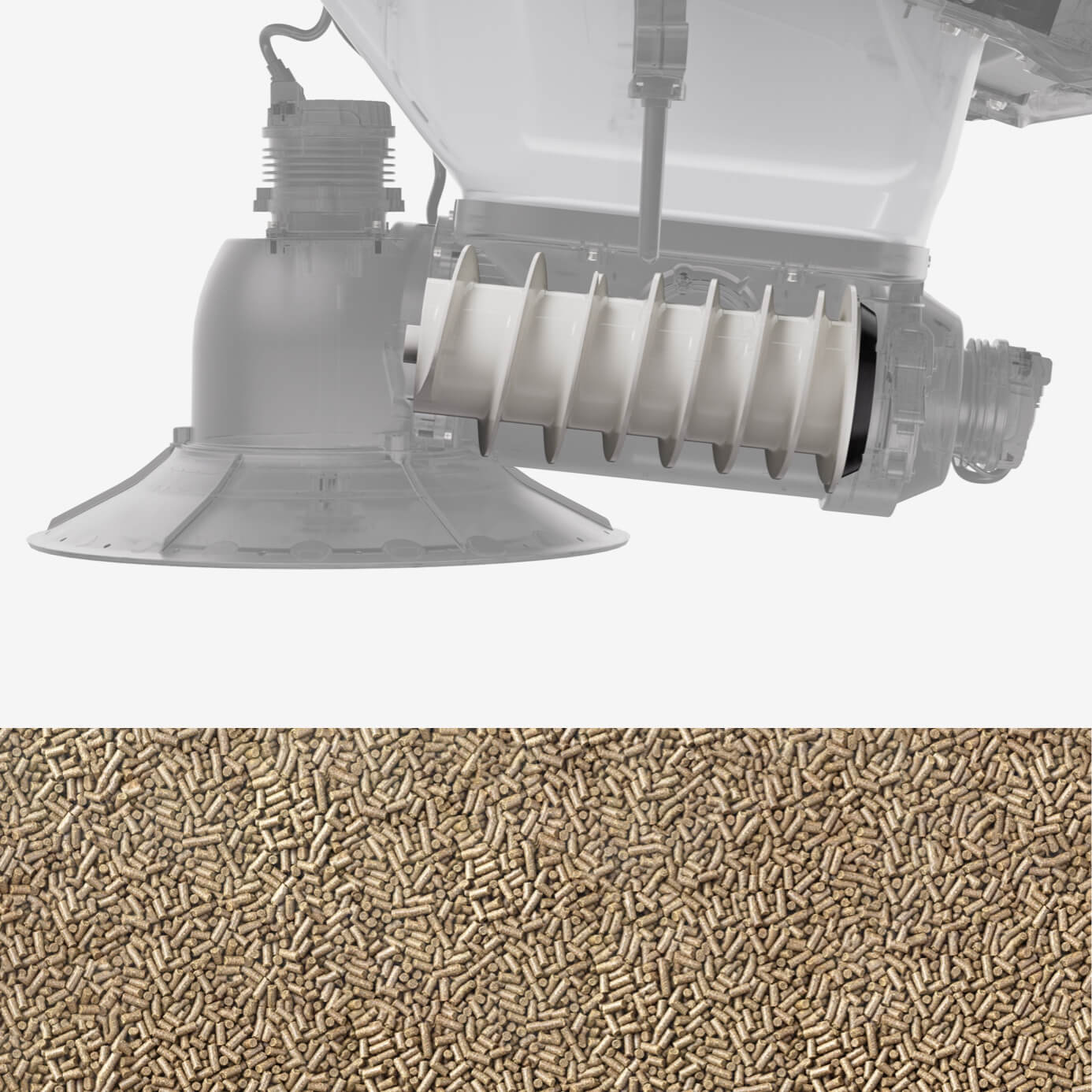

Medium-Small Feeder (Optional)
Suitable for granulars such as pelleted aquatic feed, etc.
Recommended application rate: 22.5-120 kg per hectare. Recommended particle size: 0.5-2 mm

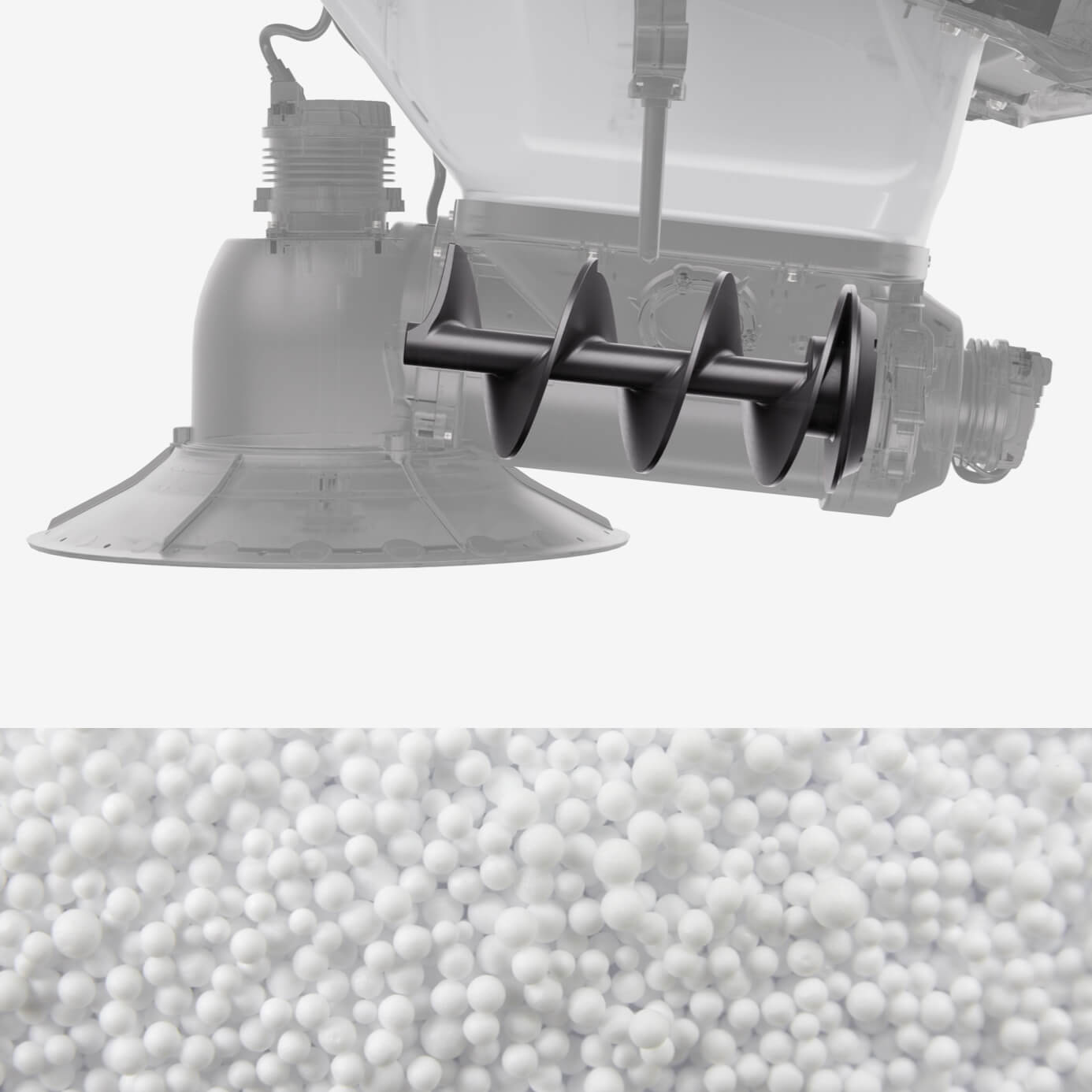

Small Feeder (Optional)
Suitable for granulars such as rapeseed, granular herbicides, and granular insecticide, etc.
Recommended application rate: 3-22.5 kg per hectare. Recommended particle size: 0.5-4 mm
Power System
Cooling During Flight,
Built for the Heat
Onboard Battery Heat
Sink
The innovative Onboard Battery Heat Sink features a built-in air-cooled system and a new battery cooling air duct to enable cooling during flight. Combined with a ground-based air-cooled heat sink, it ensures continuous operation without overheating.
High-Speed Charging
DB1580 Intelligent Flight Battery
30 Ah
1500 charge cycles under warranty
500 A high-power connector
Weight: 11.7 kg
Ergonomic handle
C10000 Intelligent Power Supply
Single-phase power input
9000 W fast charging
Adaptive power protection
1.5 m charging cable
Compare DJI Agras models
Agras T25P
Agras T55
Agras T70P
Agras T100
Get In Touch
Have a question? Ready to schedule a demo or get a quote?
We’re here to help! Reach out to us today.
Get In Touch
The DJI Agras T55 is coming soon.
Secure yours early and connect with our team to learn more.
Get T55 Updates
Early updates, launch news, and availability.
Straight to your inbox.
Specs
Weight (with Battery)
45 kg (standard configuration: two nozzles, 50 L tank, and DB1050 battery)
48.4 kg (standard configuration: two nozzles, 50 L tank, and DB1580 battery)
Max Takeoff Weight
With DB1050 battery installed:
Maximum spraying takeoff weight: 95 kg (standard with 2 spray nozzles)
Maximum spraying takeoff weight: 99 kg (with optional 4-nozzle setup)
Maximum spreading takeoff weight: 104 kg (with spreading system installed)
Maximum hoisting takeoff weight: 84 kg (with hoisting system installed)
With DB1580 battery installed:
Maximum spraying takeoff weight: 99 kg (standard with 2 nozzles)
Maximum spraying takeoff weight: 103 kg (with optional 4 nozzles)
Maximum spreading takeoff weight: 108 kg (with spreading system installed)
Maximum hoisting takeoff weight: 89 kg (with hoisting system installed)
Maximum Wheelbase (Diagonal Wheelbase)
2415 mm
Dimensions
Frame arm unfolded, propellers unfolded: 3190 × 3570 × 934 mm
Frame arm unfolded, propellers folded: 1800 × 2170 × 934 mm
Frame arm folded, propellers folded: 1120 × 896 × 934 mm
Hovering Accuracy Range (with strong GNSS signal)
RTK enabled: ±10 cm (horizontal), ±10 cm (vertical)
RTK disabled: ±0.6 m (horizontal), ±0.3 m (vertical)
Max Configurable Flight Radius
2 km
Operating Temperature
0° to 40° C (32° to 104° F)
Max Wind Speed Resistance
6 m/s
Stator Dimensions
155 × 16 mm
KV Rating
55 rpm/V
Material
Carbon Fiber Composite
Dimensions
62 inches
Quantity
4 pairs
Material
HDPE
Volume
50 L
Operating Payload
50 kg
Model
LX09050DX (standard centrifugal nozzle) / LX09510DX (optional mist nozzle)
Quantity
2 (standard) / 4 (optional)
Nozzle Distance
1800 mm (standard two nozzles)
Droplet Size
50–500 μm
Effective Spray Width
4–11 m
Type
Impeller pump (magnetic drive)
Quantity
2
Maximum Flow Rate
40 L/min (standard 2 nozzles)
50 L/min (optional 4 nozzles)
Volume
80 L
Operating Payload
55 kg
Compatible Material Diameter
Standard configuration:
Extra-large auger: 0.5–10 mm granules (fertilizer, wheat, feed, etc.)
Medium auger: 4–6 mm granules (rice)
Optional:
Large auger: 4–10 mm granules (rice, fertilizer)
Small & medium auger: 0.5–2 mm pellets (crayfish and prawn feed)
Small auger: 0.5–4 mm granules (rapeseed, granular herbicides, granular insecticides)
Spreader Structure Type
Centrifugal Disc
Discharge Structure Type
Screw Feeder Feeding
Maximum Discharge Rate
400 kg/min (compound fertilizer)
Effective Spreading Width
3–10 m
Operating Payload
40 kg
Lifting Cable Length
10 m
Recommended Cable Length
10–15 m
Operating Temperature
0° to 40° C (32° to 104° F)
Radar EIRP
< 20 dBm (NCC / KC / CE / FCC)
< 13 dBm (MIC)
Operating Temperature
0° to 40° C (32° to 104° F)
Operating Environment Requirements
Normal light intensity, rich scene texture features, and no dirt
Operating Power Consumption
Front Radar: 36 W (peaking)
Downward Vision Radar: 3.5 W (peaking)
Rear Radar: 3.5 W (peaking)
Field of View (FOV)
Front Radar: horizontal 360°, vertical ±45°
Top Radar: left/right ±45°, front/back ±45°
Downward Radar: left/right ±45°, front/back ±45°
Rear Radar: left/right ±45°, front/back ±45°
Tri-vision system: horizontal 360°, vertical 180°
FPV camera: 86° horizontal, 155° vertical
Measurement Range
60 m
Effective Safe Obstacle Bypass Speed
≤ 13.8 m/s
Effective Obstacle Avoidance Height
≥ 1.5 m
Safety Distance
2.5 m (distance from obstacle after aircraft brakes and stabilizes in hover)
Model
TKPL 2
Screen
7-inch LCD touchscreen
Resolution: 1920 × 1200
Brightness: 1,400 cd/m²
Storage Temperature
Within 1 month: -30° to 45° C (-22° to 140° F)
1–3 months: -30° to 35° C (-22° to 113° F)
3 months–1 year: -30° to 30° C (-22° to 86° F)
Recharging Temperature
5° to 40° C (41° to 104° F)
Internal Battery Runtime
3.8 hours
External Battery Runtime
3.2 hours
Charging Type
USB-C fast charge, max 65 W (max voltage 20 V)
DJI Portable Charger recommended
Charging Time
2 hours (internal battery or internal + external battery, controller powered off, standard DJI charger)
Weight
8.3 ± 0.3 kg
Capacity
20000 mAh
Voltage
52.5 V
Weight
11.7 ± 0.3 kg
Capacity
30000 mAh
Voltage
52 V
Output Channels
- DC recharge output: 42–61.6 V / 6500 W
- Air-cooled radiator charge: 12 V / 6 A / 4.5 A
- DC output: 48 V / 500 W
Charging Time
8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95%)
Fuel Tank Capacity
20 L
Starting Method
One-button start
Operating Temperature
-20° to 40° C (-4° to 104° F)
Compatible Battery
DB1050 / DB1580 / DB2160 Intelligent Flight Battery
Dimensions
452 × 566 × 600 mm
Weight
46 ± 0.5 kg
Fuel Type
Unleaded gasoline (RON ≥91 / AKI ≥87), alcohol ≤10%
(Brazil: alcohol content up to 27%)
Reference Fuel Consumption
500 mL/kWh
Engine Oil Capacity
0.8 L
Engine Oil Type
SN 15W-50
Charger Model
CSX711-7000
Dimensions
460 × 160 × 80 mm
Weight
8.5 kg
Input Voltage
Single-phase 220–240 V
Three-phase 380–480 V
Output Voltage
50–62 V
Rated Output Current
Single-phase: 40 A
Three-phase: 140 A
Rated Power
7000 W (three-phase 380 V input)
2000 W (single-phase 220 V input)
Charging Time
8–9 minutes (DB1050 Intelligent Flight Battery, 30%–95%)
Protection Functions
Over-temperature, over-voltage, under-voltage, short-circuit, fan stall, and other protections
Operating Temperature
-20° to 40° C (-4° to 104° F)
Output Channels
1
Compatible Battery
DB1050 / DB1580 / DB2160 Intelligent Flight Battery
Model
RL0265
Dimensions
112 × 112 × 51 mm (no antenna)
120 × 112 × 101 mm (with antenna)
Weight
630 g
Input Voltage
2.7 V – 24 V
Power Consumption
10.48 W (FCC)
Total Capacity
6500 mAh
Operating Time
5 hours
Operating Frequency
2.4000–2.4835 GHz
5.170–5.250 GHz
5.725–5.850 GHz
Signal Range
4 km (MIC / KCC / CE)
8 km (FCC)
(in a non-interference, unobstructed environment at 2.5 m flight altitude)
Charging Time
2.5 hours (30 W recharge)
Ingress Protection Rating
IP55
Supported Satellite Systems
GPS: L1 / L2 / L5
BeiDou: B1I / B2I / B3I / B1C / B2A / B2B
Galileo: E1 / E5a / E5b / E6
GLONASS: G1 / G2
QZSS: L1CA / L2C / L5
L-Band
Dimensions
345 × 244 × 300 mm
Weight
3.77 kg (including packaging)
Power Consumption
7 W
Total Capacity
6500 mAh
Operating Time
7 hours
Operating Frequency
Broadcast mode:
O4: 2.4 GHz / 5.8 GHz
Signal Range
FCC: 15 km
CE / JP: 8 km
Charging Time
2.5 hours (30 W recharge)
Ingress Protection Rating
IP67
Positioning Accuracy
PPP satellite-based service accuracy:
Convergence time: 20 minutes
Horizontal: 30 cm (RMS)
Elevation: 40 cm (RMS)
Network RTK calibration:
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
1 ppm: For every additional 1 km between aircraft and base station, accuracy decreases by 1 mm (e.g., 1 km = 1.1 cm accuracy)
