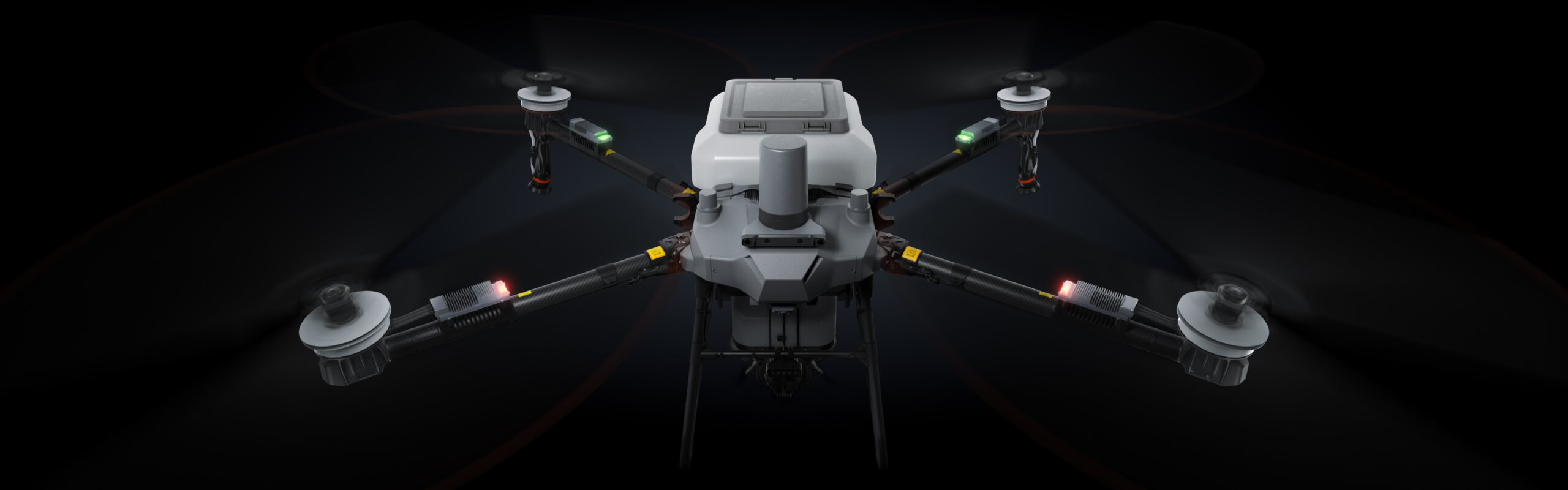

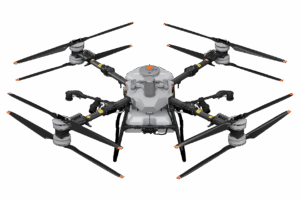

DJI AGRAS T70P
Efficiency Expert.
Coming Soon to Canada
The DJI Agras T70P agricultural drone is newly upgraded to support spraying, spreading, and lifting in various operational scenarios, with a maximum payload capacity of 70 kg. It delivers enhanced efficiency while featuring Safety System 3.0 and advanced algorithms for comprehensive, round-the-clock protection.
70 L Spraying Tank, 40 L/min Flow Rate
100 L Spreading Tank
400 kg/min Flow Rate
Obstacle Avoidance AR Enhanced Display
20 m/s Max Operation Speed
65 kg Lifting
Ultra-Fast Charging
Spraying System
Efficient operation,
Outstanding performance.
The T70P comes equipped with a 70 L tank and dual atomization centrifugal sprinklers, offering high flow rates for faster flight speeds and greater operational efficiency in field applications. Orchard users can choose an optional mist sprinkler set, which upgrades both flow rate and atomization effects, ensuring thorough penetration even through dense canopies and tall plants.
Field Operations
20 %
Increase in Operation Efficiency
30 L/min
20 m/s
4-11 m
Orchard Operations
40 L/min
65 %
Water-Cooled Mist Sprinklers(Optional)
Dual Atomization Centrifugal Sprinklers
Magnetic Drive Impeller Pumps
Solenoid Valves
Dual-Channel Electromagnetic Flow Meter
Spreading System
Outstanding Efficiency and
Performance
The T70P features a new spreading system with a larger payload and capacity, delivering a 270% increase in spreading flow rate for significantly improved efficiency. Equipped with a new screw feeder, it supports a wide range of granulars and excels in diverse scenarios, including fields, orchards, and aquaculture.
100 L(70 kg)
Large Capacity Spreading Tank
400 kg/min
10 m
0.5-10 mm

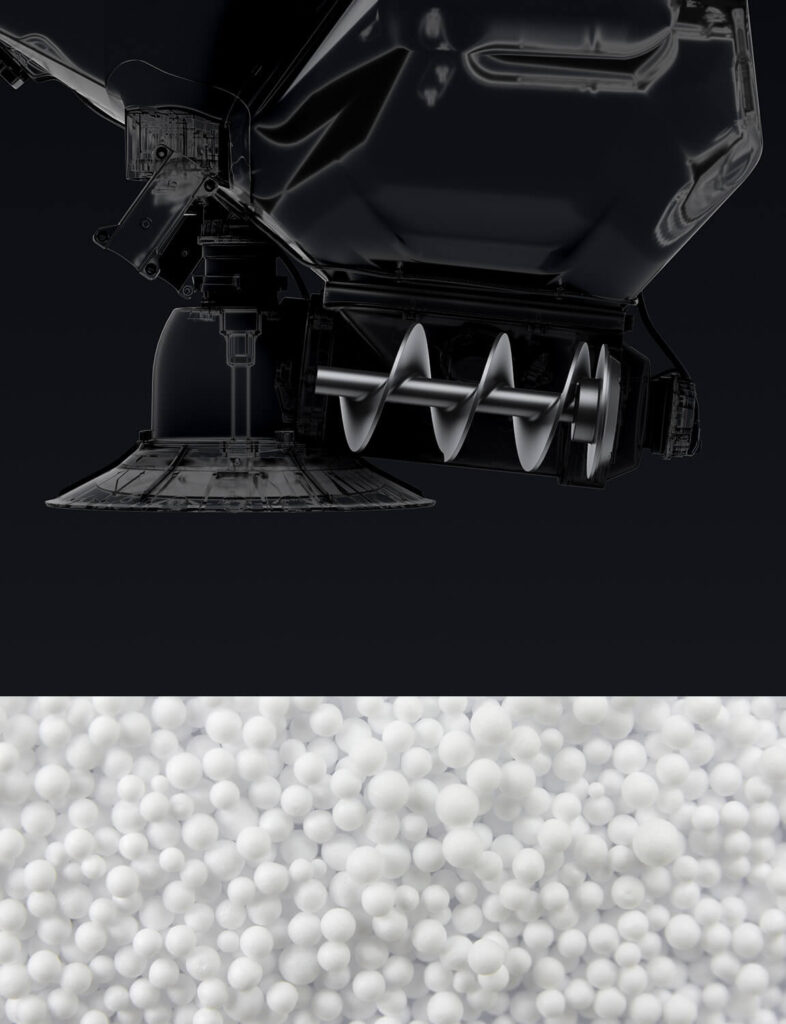

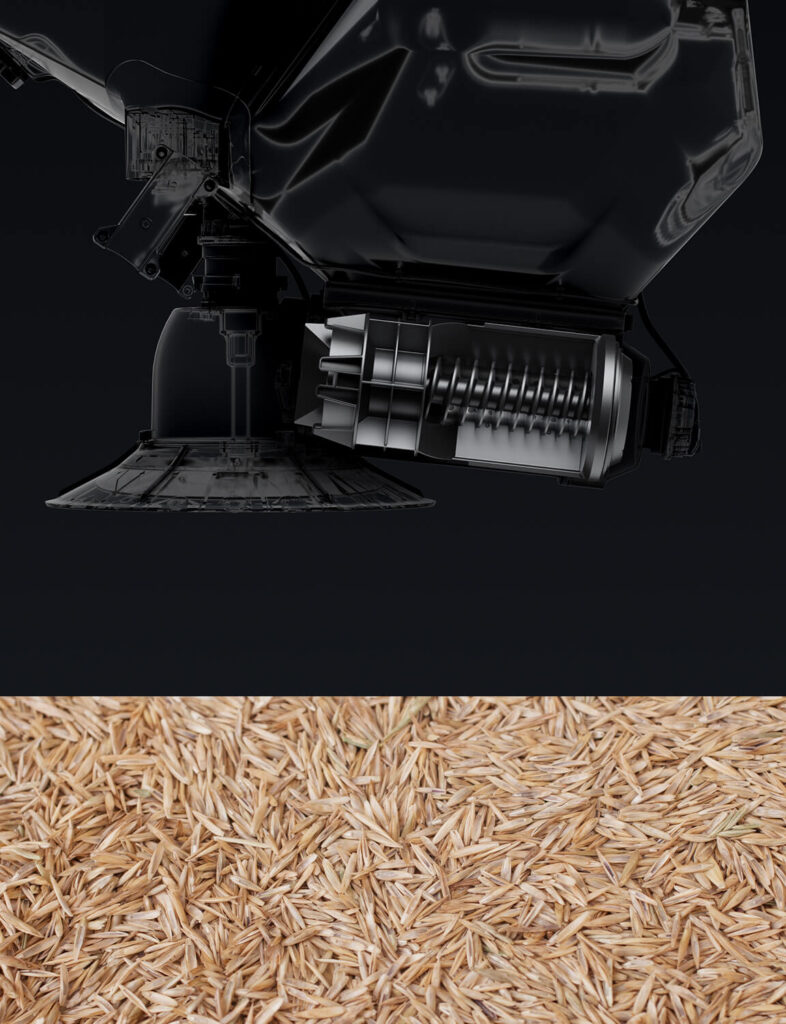

Four Feeder Types for Different
Granulars
Supports four interchangeable feeder sizes for precise flow and greater adaptability across seeding, fertilizing, and feeding.

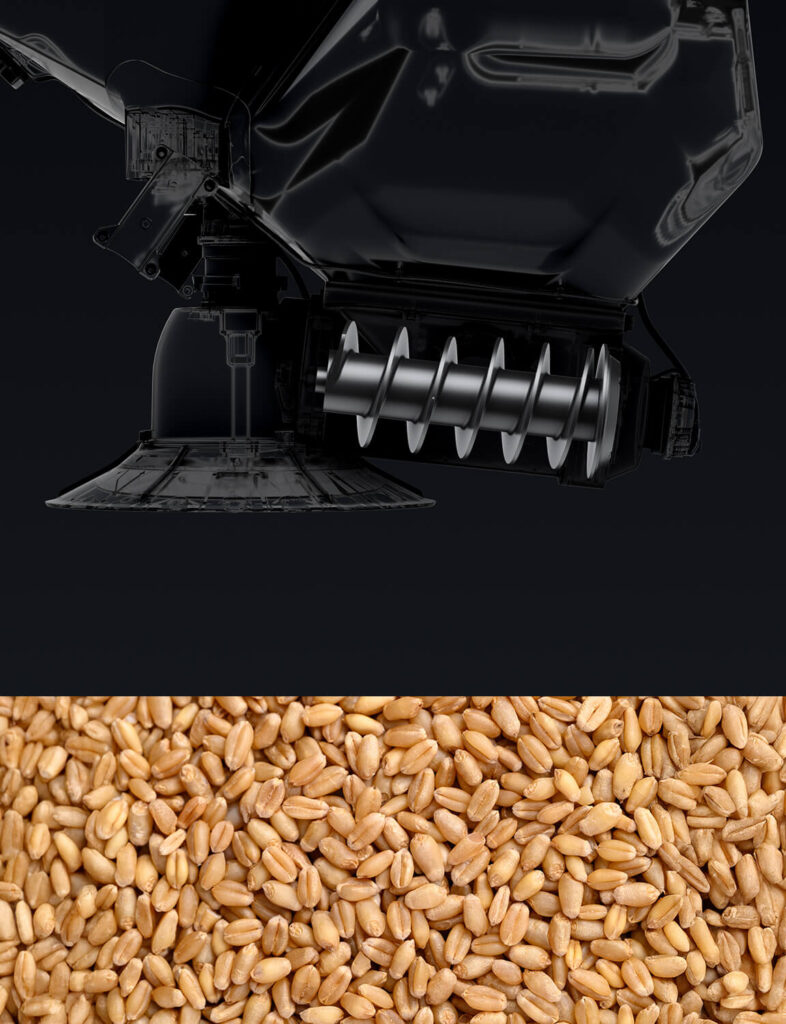

Extra-Large Feeder
Suitable for granulars such as fertilizers, wheat seeds, granular fungicides, feed, etc.
Recommended application rate: 75-750 kg per hectare.
Recommended particle size: 0.5-10 mm
Large Feeder (Optional)
Suitable for granulars such as rice seeds, cover crop seeds, etc.
Recommended application rate: 75-270 kg per hectare.
Recommended particle size: 4-10 mm
Medium Feeder
Suitable for granulars such as rice seeds.
Recommended application rate: 22.5-120 kg per hectare.
Recommended particle size: 4-6 mm
Small Feeder (Optional)
Suitable for granulars such as rapeseed, granular herbicides, grass seeds, granular insecticides, etc.
Recommended application rate: 3-22.5 kg per hectare.
Recommended particle size: 0.5-4 mm.
Safety System
Obstacle Avoidance, AR
Enhanced Display
The T70P is equipped with intelligent obstacle avoidance and AR-enhanced display. With Safety System 3.0, its radar and vision systems work together with upgraded algorithms to deliver comprehensive obstacle awareness, enabling smooth navigation and effortless maneuvering through fields.

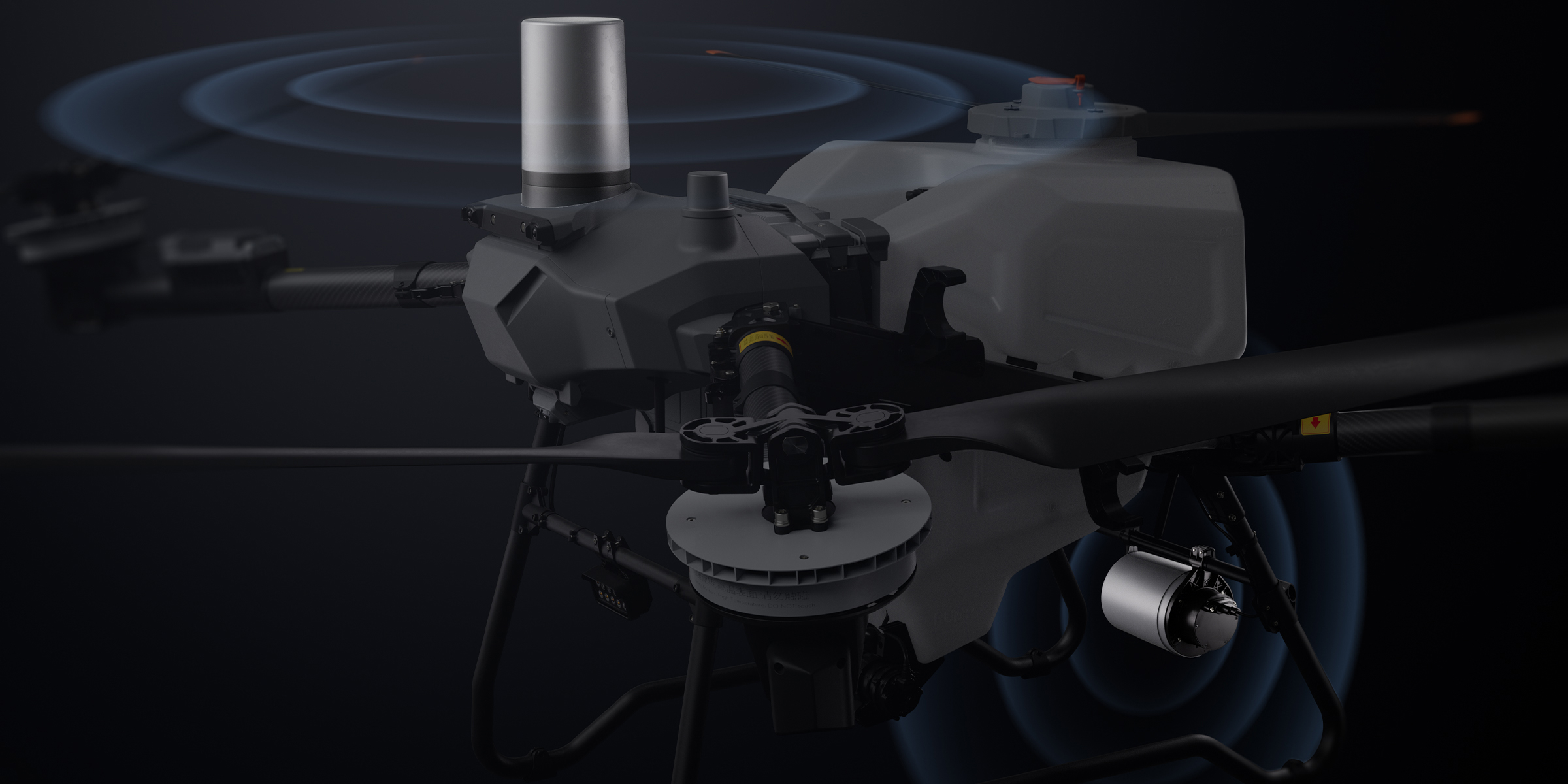

The front radar performs 5,000 vertical airspace scans per second combined with 360° horizontal mechanical rotation scanning, along with a rear radar, offering a more comprehensive detection range.
Two black-and-white fisheye cameras and an FPV camera work in tandem with radar through visual fusion algorithms to enhance Terrain Following and obstacle avoidance capabilities.

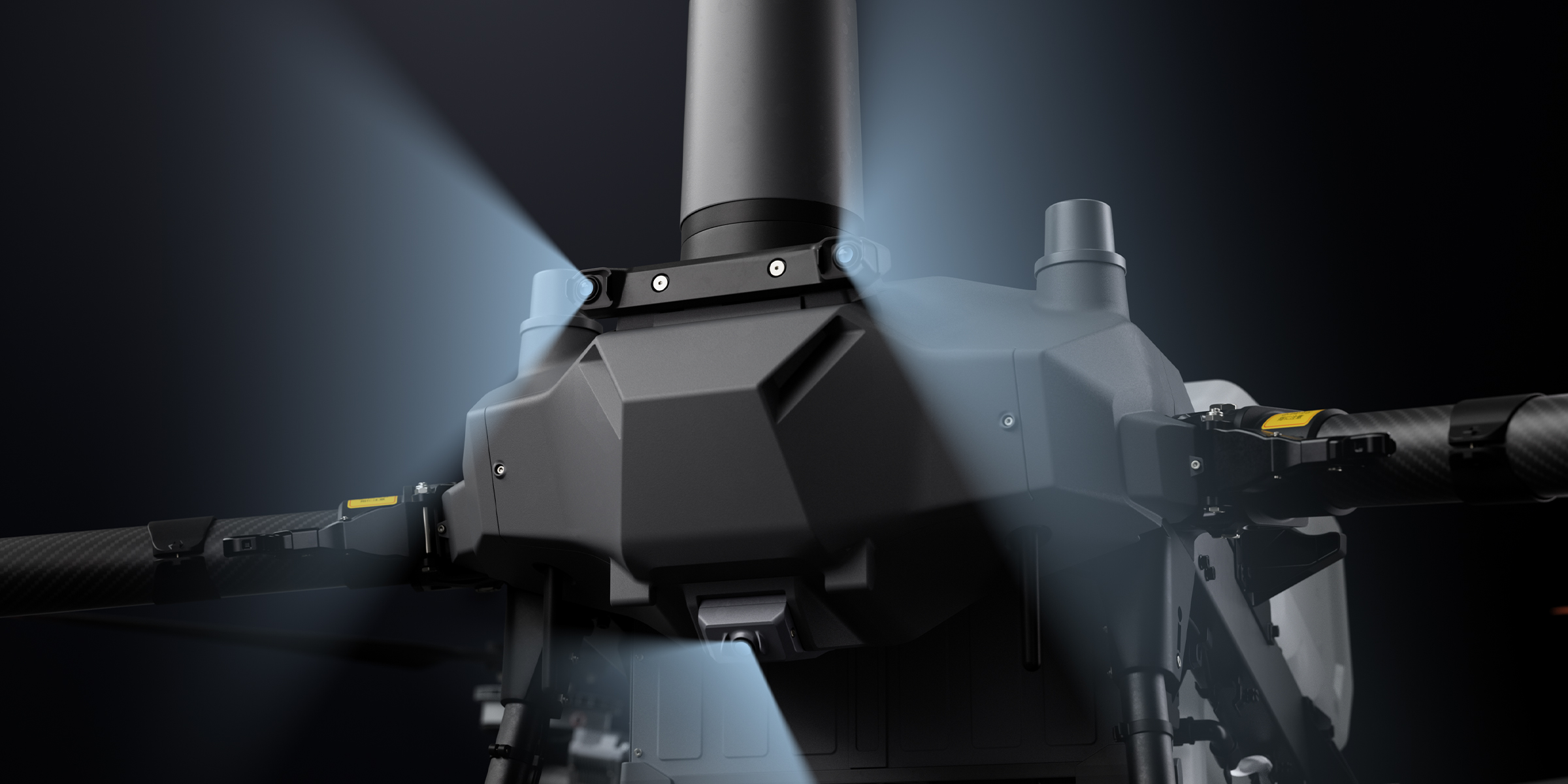

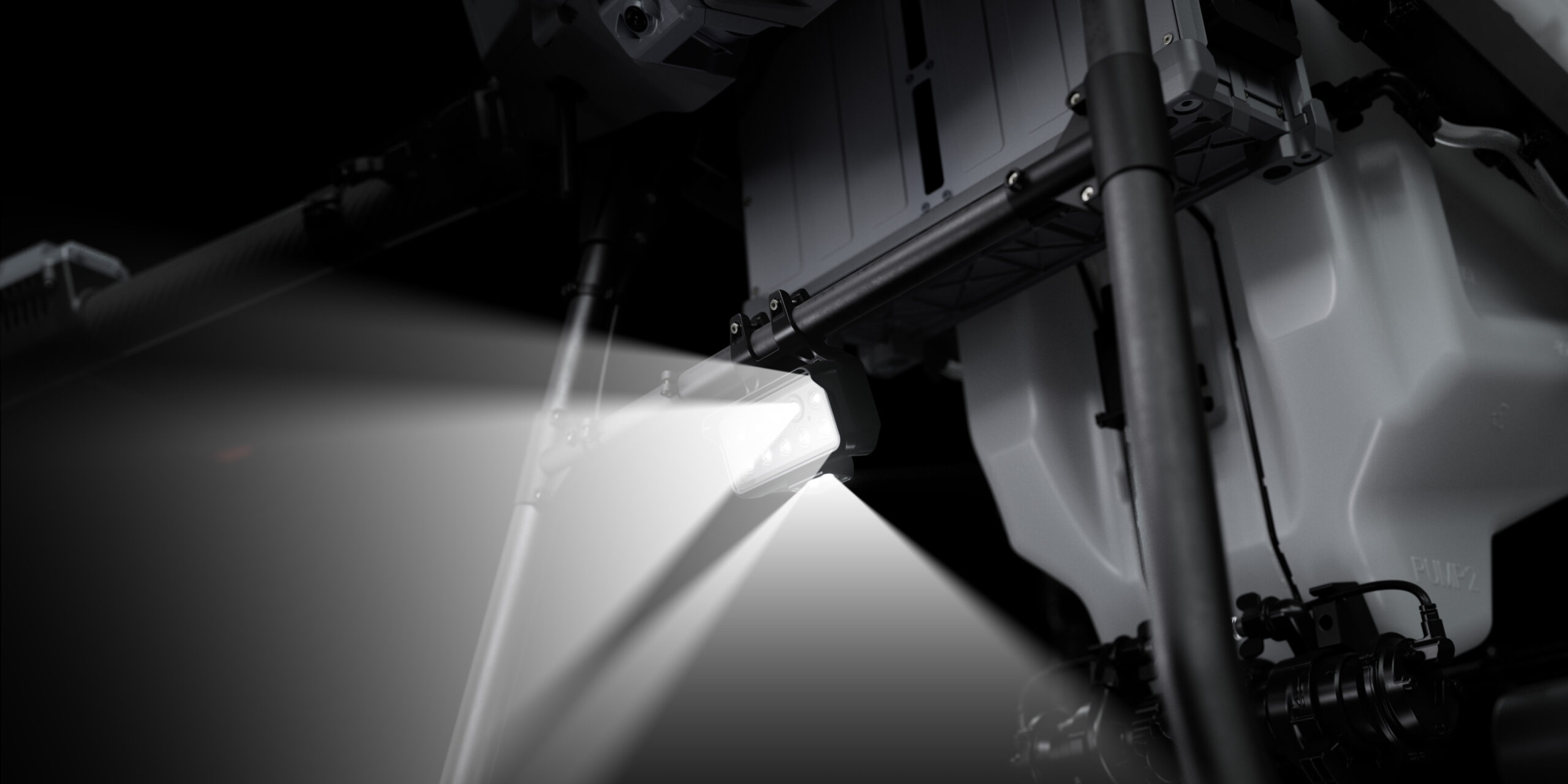

In addition to the existing low beam lights, new front-facing high beams and downward supplemental lighting have been added. The downward lighting automatically activates during landing, ensuring safer nighttime operations.

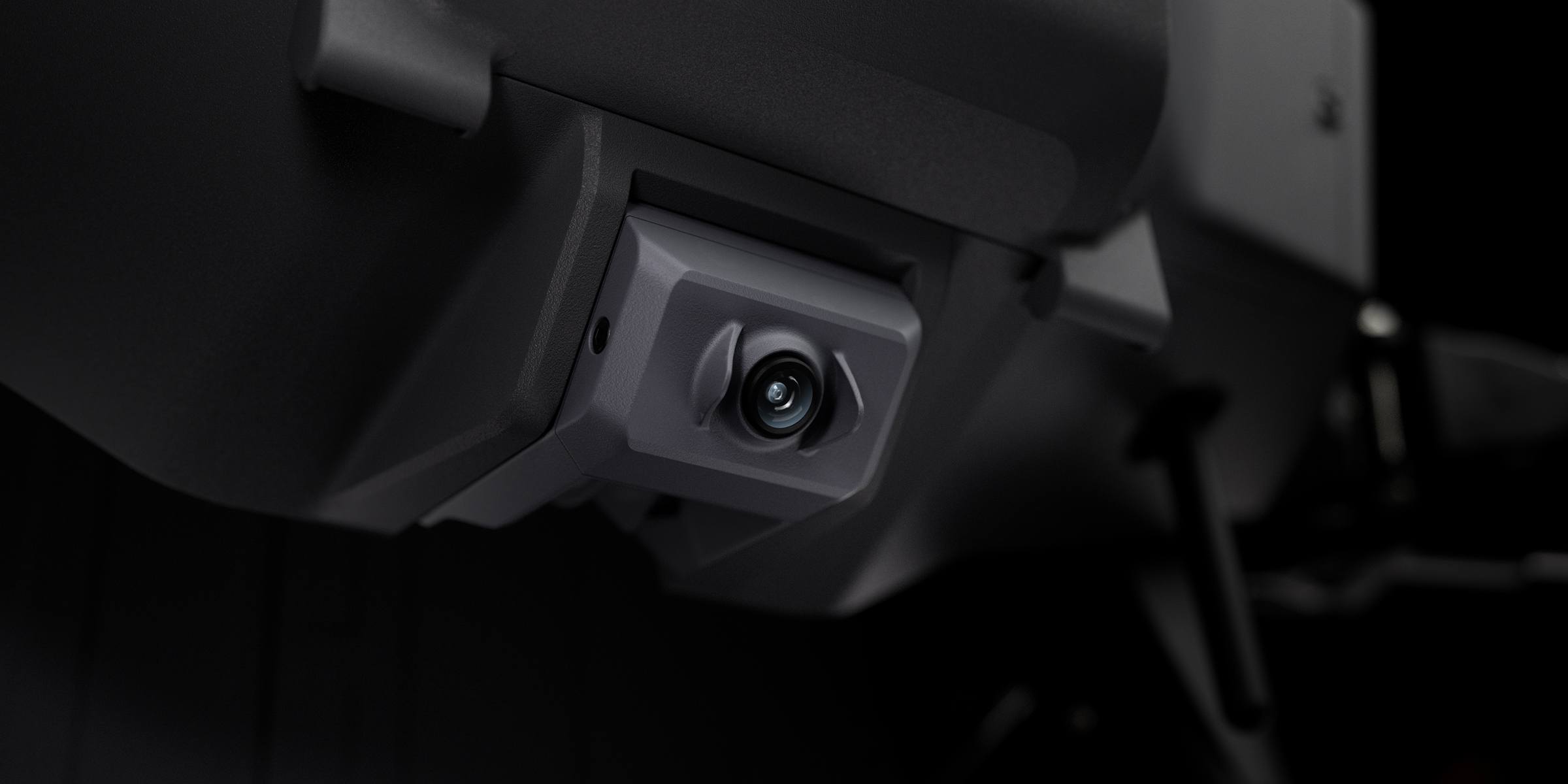

Utilizing virtual gimbal technology, the FPV camera's pitch angle can be freely adjusted. It supports night vision mode, and when combined with night navigation lights, obstacles remain clearly visible even in the dark.

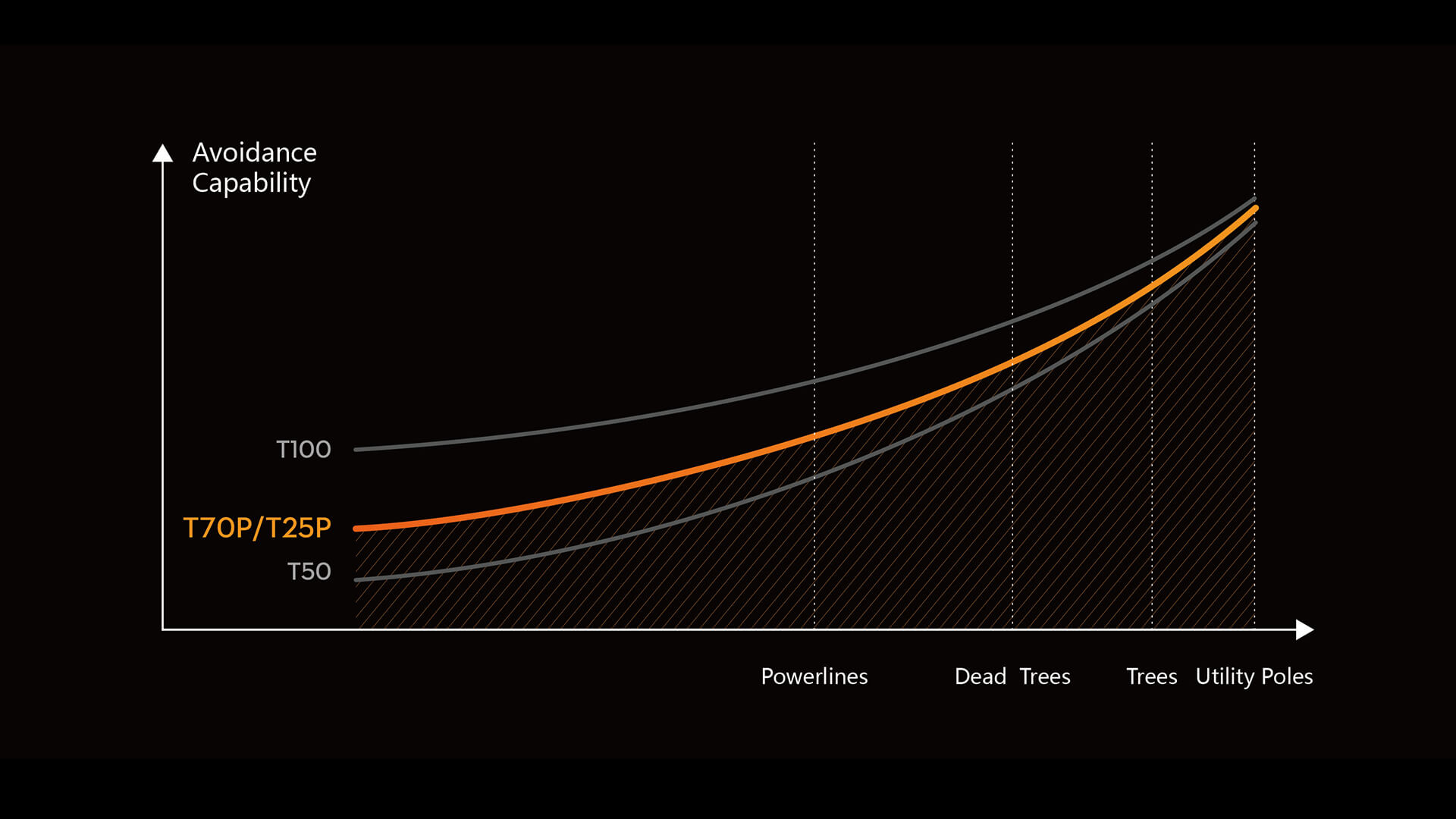

Obstacle Avoidance Capability
Supports 360° horizontal and upward obstacle avoidance, along with steep slope Terrain Following without aerial mapping. The detection rate for diagonal cables and power lines has been improved, ensuring all field obstacles are clearly detected.
Intelligent Obstacle Bypassing
The newly upgraded Safety System 3.0 incorporates intelligent detection algorithms, enabling obstacle detection and smarter route selection, significantly improving obstacle clearance rates. Additionally, it features an advanced terrain mapping algorithm that accurately extracts terrain features for high-precision Terrain Following operations in agricultural settings.
Lift System
Your Transport Assistant
The T70P transforms into a transport solution with a lifting capacity of 65 kg it carries more and travels further. Features like Auto Balance Control, weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.
Solar Panels
Fruits
Building Materials
Saplings
Propulsion System
Powerful Performance, Higher
Efficiency
The T70P, through further optimization of the power system, effectively reduces energy consumption while maintaining the same operational area and effectiveness.
20 m/s
18 %
30 %

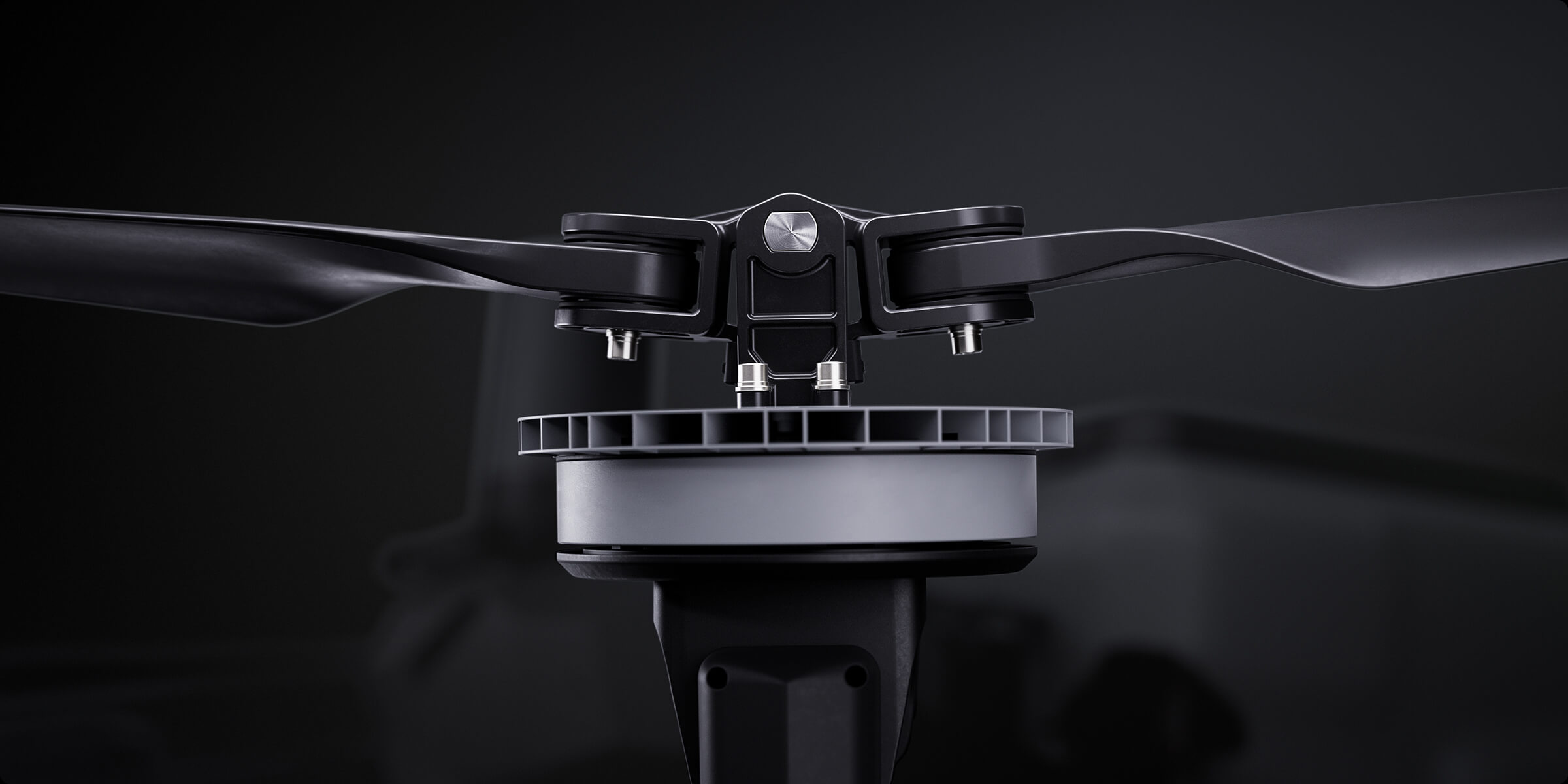

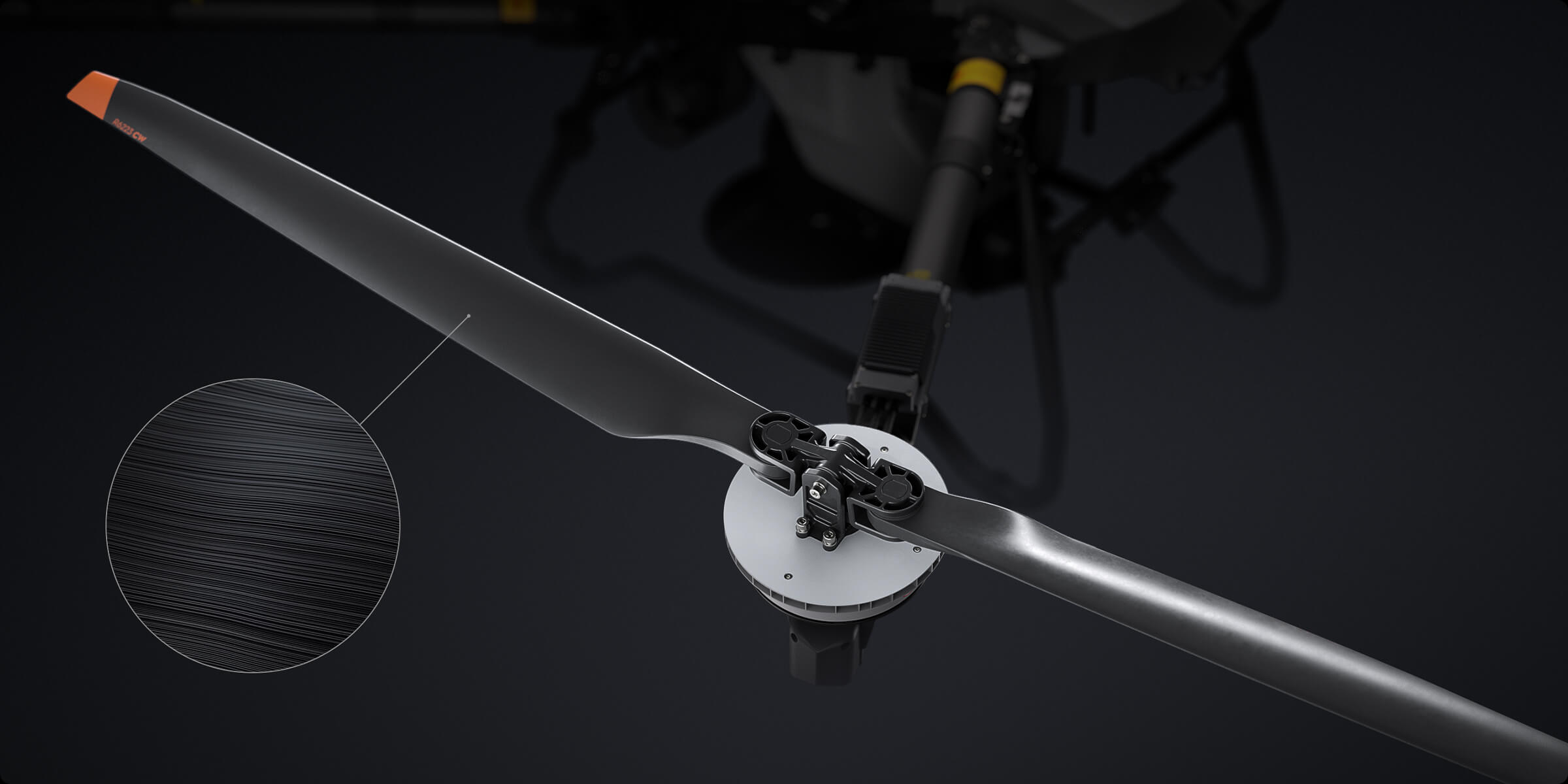

Carbon fiber propellers offer greater rigidity and lighter weight, resisting deformation even at high temperatures. With an optimized airfoil and increased diameter, efficiency is improved by 15%[7].

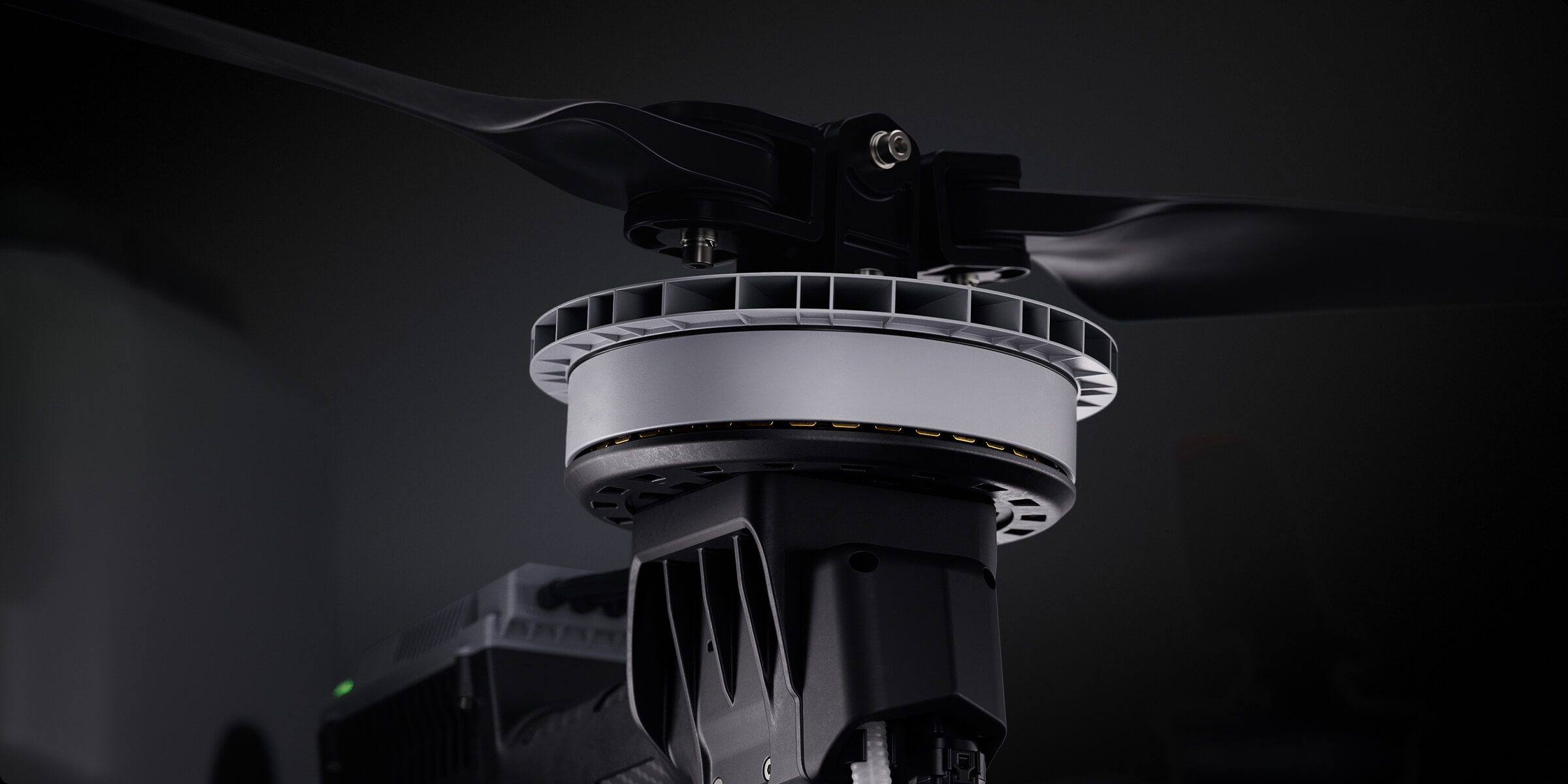

With enhancements in motor electromagnetics and craftsmanship, efficiency is improved by 3%.
Reduces body vibration by 40%, resulting in more stable flight and lower power consumption.

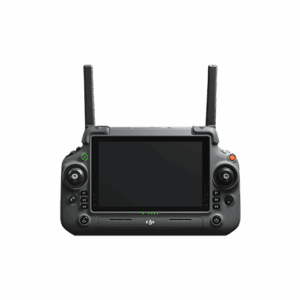

DJI RC Plus
Easy Control for New and
Experienced Pilots
DJI RC Plus features a 7-inch high-brightness screen that is 16% brighter for clear visibility under sunlight. Both internal and external battery life are extended by 30 minutes. New backlit buttons enhance nighttime operation, and customizable physical buttons offer flexible control.
Rigorous Testing Standards
The T70P has undergone 700 hours of reliability testing, including real-flight aging, accelerated component fatigue, and extreme temperature evaluations. These ensure stability and reliability, delivering unmatched performance under various conditions.
Transmission System
Seamless Signal Stability
The upgraded O4 video transmission algorithm ensures constant signal availabilitys. O4 Relay it's designed to excel in challenging signal conditions, delivering seamless and efficient operations.
O4 Transmission
An upgraded transmission algorithm enhances the range while maintaining smooth and stable visuals for consistent performance.

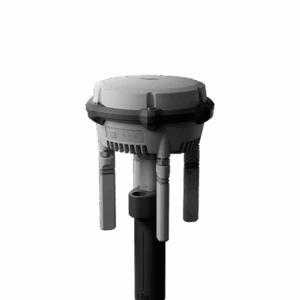

D-RTK 3 AG (Optional)
Enabling plug-and-play centimeter-level positioning without the need to configure coordinates. It ensures precision across the entire operation.
RTK High-Precision Positioning Module
Use in conjunction with the remote controller and smartphone for precise location marking.

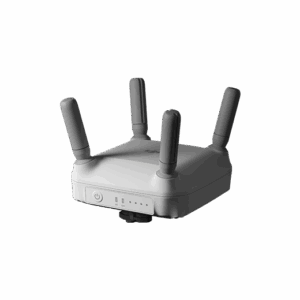

O4 Relay (Optional)
A Relay can ensure smooth operations in scenarios that have signal interference.
Power System
Ultra-Fast Charging, Energy-
Efficient Design
The T70P achieves significant power savings thanks to enhanced energy efficiency, effectively reducing operational costs. It supports two smart flight batteries, catering to varying operational needs.

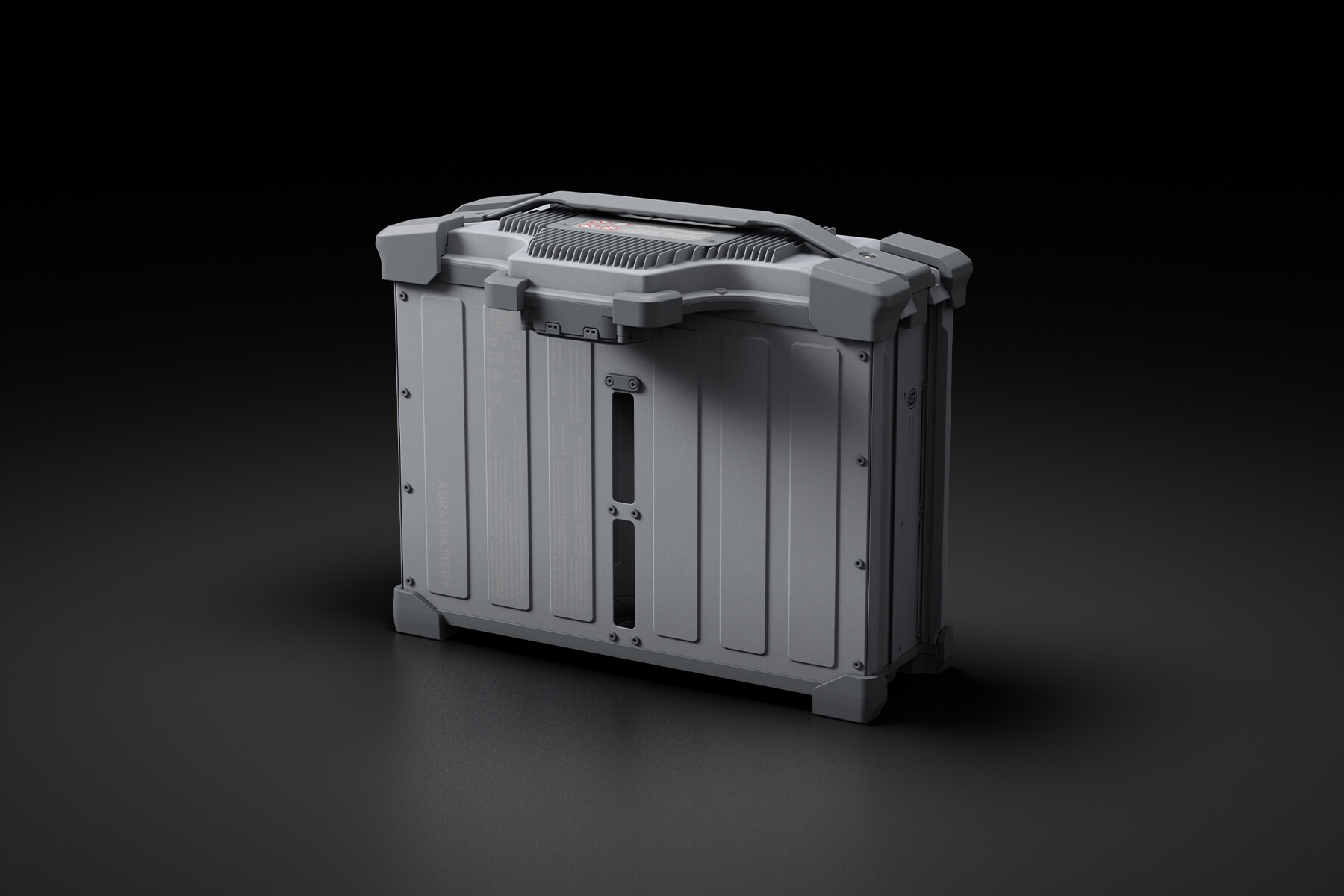

DB1580 Intelligent Flight Battery
30 Ah
1500 charge cycles under warranty
500 A high-power connector
Weight: 11.7 kg
Ergonomic handle
DB2160 Intelligent Flight Battery
41 Ah
1500 charge cycles under warranty
500 A high-power connector
Weight: 14.7 kg
Ergonomic handle

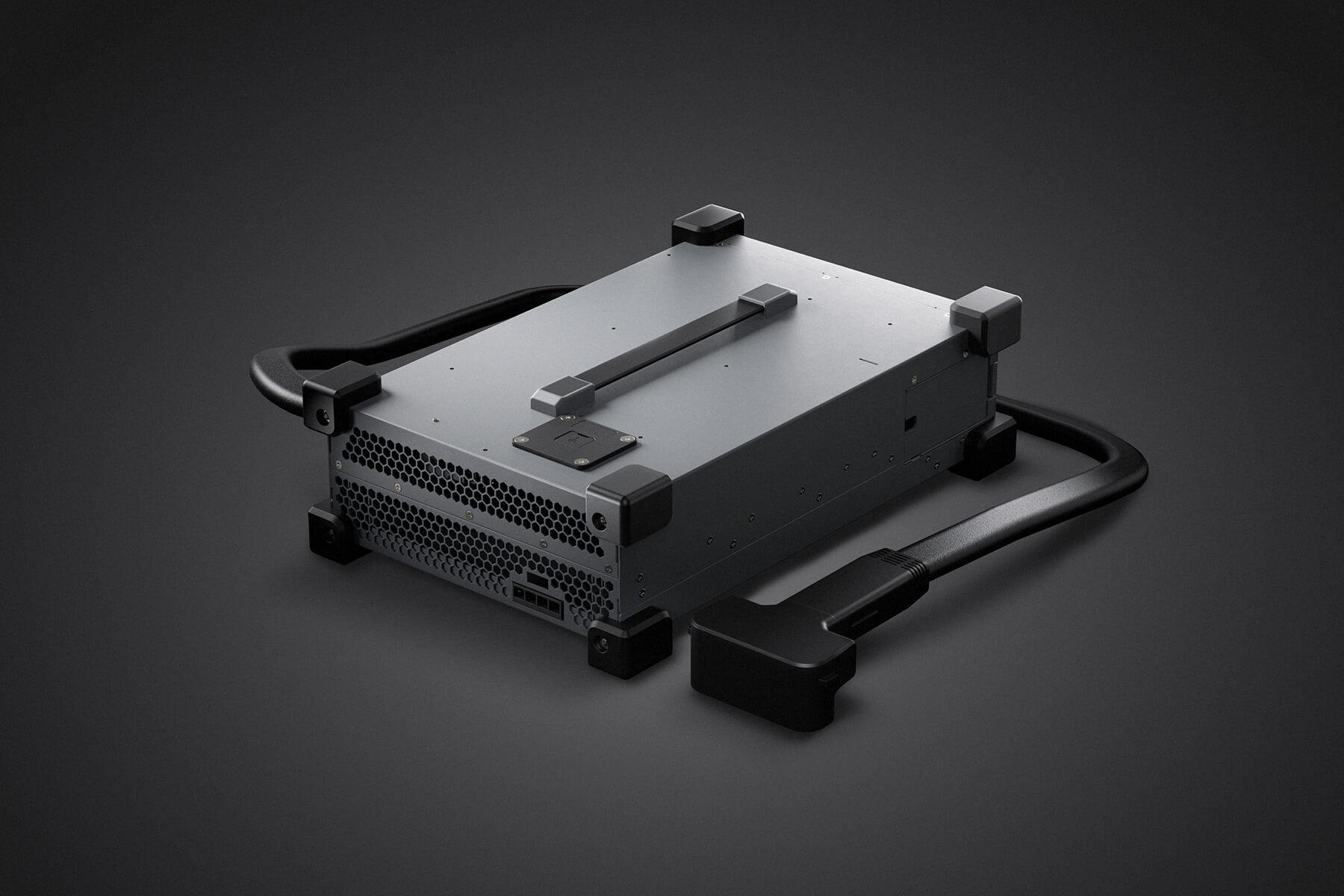

C10000 Intelligent Power Supply
Single-phase power input
9000 W fast charging
Adaptive power protection
1.5 m charging cable
C12000 Intelligent Power Supply
Tri-phase power input
12000 W fast charging
Adaptive power protection
1.8 m charging cable
Which Package Suits You Best?

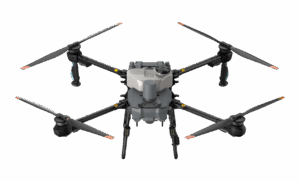

DJI Agras T100
Spraying Payload: 100 L [1]
Flow Rate: 30 L/min (Standard 2 sprinklers)
Flow Rate: 40 L/min (Optional 4 sprinklers)
Dual Atomization Centrifugal Sprinklers: 50-500 μm[9]
Optional Water-Cooled Mist Sprinklers: 50-500 μm[23]

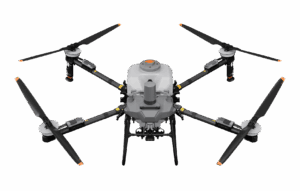

DJI Agras T70P
Spraying Payload: 70 L [1]
Flow Rate: 30 L/min (Standard 2 sprinklers)
Flow Rate: 40 L/min (Optional 4 sprinklers)
Dual Atomization Centrifugal Sprinklers: 50-500 μm[9]
Optional Water-Cooled Mist Sprinklers: 50-500 μm[23]
Recommended Spray Width: 7 m[8]
DJI Agras T25P
Spraying Payload: 20 L [1]
Flow Rate: 16 L/min (Standard 2 sprinklers)
Flow Rate: 24 L/min (Optional 4 sprinklers)
Dual Atomization Centrifugal Sprinklers: 50-500 μm[9]
Recommended Spray Width: 5 m[8]
Spreading Payload: 150 L[3] (100 kg[1])
Max Flow Rate: 400 kg/min[4]
Effective Spreading Width: 10 m[10]
Spreading Payload: 100 L[24] (70 kg[1])
Max Flow Rate: 400 kg/min[4]
Effective Spreading Width: 10 m[10]
Spreading Payload: 30 L[26] (25 kg[1])
Max Flow Rate: 190 kg/min[4]
Effective Spreading Width: 8 m[10]
Paylaod Capacity: 100 kg[5]
Real-Time Weighing
Automatic Balance Control
Loading and Unloading Points by Mobile
Paylaod Capacity: 65 kg[25]
Real-Time Weighing
Automatic Balance Control
Loading and Unloading Points by Mobile
Not Supported
LiDAR
Penta-Vision System
Millimeter-Wave Radars
Tri-Vision System
Millimeter-Wave Radar
Tri-Vision System
Millimeter-Wave Radar
Real-Time LiDAR Point Cloud Display
Obstacle Detection
AR Display for Utility Pole, Vehicles, and Obstacles
Automatic Obstacle Position Memory
Terrain Following Without Aerial Mapping
Obstacle Detection
AR Display for Utility Pole, Vehicles, and Obstacles
Automatic Obstacle Position Memory
Terrain Following Without Aerial Mapping
Intelligent Obstacle Bypassing
Terrain Following Without Aerial Mapping
Ultra-Fast Charging
DB2160 Intelligent Flight Battery
D14000iE Multifunctional Inverter Generator
Ultra-Fast Charging
DB1580 Intelligent Flight Battery
DB2160 Intelligent Flight Battery
D14000iE Multifunctional Inverter Generator
Ultra-Fast Charging
DB800 Intelligent Flight Battery
D6000i Multifunctional Inverter Generator
Get In Touch
The DJI Agras T70P is coming soon.
Secure yours early and connect with our team to learn more.
Get T70P Updates
Early updates, launch news, and availability.
Straight to your inbox.
Specs
Weight
Equipped with DB1580 Intelligent Flight Battery: 52 kg (including battery)
Equipped with DB2160 Intelligent Flight Battery: 56 kg (including battery)
Max Takeoff Weight [1]
Equipped with DB1580 Intelligent Flight Battery:
Max takeoff weight for spraying (standard with 2 nozzles): 102 kg
Max takeoff weight for spraying (optional with 4 nozzles): 105 kg
Max takeoff weight for spreading: 126 kg
Max takeoff weight for lifting: 115 kg
Equipped with DB2160 Intelligent Flight Battery:
Max takeoff weight for spraying (standard with 2 nozzles): 126 kg
Max takeoff weight for spraying (optional with 4 nozzles): 130 kg
Max takeoff weight for spreading: 130 kg
Max takeoff weight for lifting: 118.5 kg
Max Diagonal Wheelbase
2440 mm
Dimensions
3200 × 3520 × 960 mm (arms and propellers unfolded)
1820 × 2100 × 960 mm (arms unfolded and propellers folded)
1160 × 900 × 960 mm (arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK Enabled: ±10 cm (horizontal), ±10 cm (vertical)
RTK not enabled: Horizontal ±0.6 m, vertical ±0.3 m
Max Configurable Flight Radius
2 km
Operating Temperature
0 °C to 40 °C
Max Wind Resistance
<6 m/s
Stator Size
155 × 22 mm
KV
65 rpm/V
Material
Carbon Fiber Composite
Dimensions
62 inches
Quantity
4
Material
HDPE
Volume
70 L
Operating Payload
70 kg
Model
LX07550SX (Standard Nozzle) / LX09550SX (Optional Mist Nozzle)
Quantity
2 (Standard) / 4 (Optional)
Nozzle Distance
1874 mm (Rear Nozzles)
Droplet Size
50–500 μm
Effective Spray Width [2]
4–11 m
Type
Impeller Pump (Magnetic Drive)
Quantity
2
Max Flow Rate
30 L/min (Standard 2 Sprays)
40 L/min (Optional 4 Sprays)
Compatible Material Diameter
Standard configuration:
Extra-large auger: 0.5 mm – 10 mm granules (fertilizer, wheat, feed, etc.)
Medium auger: 4 mm – 6 mm granules (rice)
Optional:
Large auger: 4 mm – 10 mm granules (rice, fertilizer)
Small auger: 0.5 mm – 4 mm granules (rapeseed, granular herbicides, granular insecticides)
Spreading Tank Volume
100 L
Spreader Structure Type
Centrifugal Disc
Discharge Structure Type
Feeder Feeding
Max Discharge Rate
400 kg/min (compound fertilizer)
Max Load Inside the Spreading Operation Box
70 kg
Effective Spreading Width [3]
3 – 10 m
Load Capacity [4]
65 kg
Lifting Cable Length
10 m (standard configuration)
Recommended Cable Length
10 – 15 m
Operating Temperature
0 °C to 40 °C
Millimeter Wave Radar EIRP
< 20 dBm (NCC / MIC / KC / CE / FCC)
Operating Temperature
0 °C to 40 °C
Operating Environment
Adequate light and discernible surroundings
Field of View (FOV)
Front millimeter wave radar: Horizontal 360°, Vertical ±45°, Up ±45° (cone)
Rear millimeter wave radar: Vertical 360°, Horizontal ±45°
Tri-eye Visionary Intelligence: Horizontal 90°, Vertical 180°
Range [4]
≤ 60 m
Effective Safe Obstacle Avoidance Speed [5]
≤ 13.8 m/s
Effective Obstacle Avoidance Height
≥ 1.5 m
Model
TKPL 2
Screen
7-inch LCD touchscreen; resolution: 1920 × 1200; brightness: 1400 cd/m²
Storage Temperature Range
Less than one month: -30° to 45° C (-22° to 113° F)
One to three months: -30° to 35° C (-22° to 95° F)
Three months to one year: -30° to 30° C (-22° to 86° F)
Charging Temperature
5° to 40° C (41° to 104° F)
Internal Battery Runtime
3.8 hours
External Battery Runtime
3.2 hours
Charging Type
Use a USB-C fast charger with a maximum power of 65 W (max voltage 20 V), recommended: DJI Portable Charger
Charging Time
2 hours for internal battery or internal and external battery (when remote controller is powered off and using a standard DJI charger)
Weight [1]
11.7 ± 0.3 kg
Capacity
30,000 mAh
Nominal Voltage
52 V
Weight [1]
14.7 ± 0.3 kg
Capacity
41,000 mAh
Nominal Voltage
52 V
Charger Model
CSX901-12000
Dimensions
456 mm × 291 mm × 107 mm
Weight [1]
13.13 kg
Input
Three-phase AC Input: 175 – 520 V
Single-phase AC Input: 200 – 264 V
Output
62 V
Rated Output Current
194 A
Rated Power
12000 W (three-phase 380 V input)
3000 W (single-phase 220 V input)
Charging Time [6]
7 – 8 mins (DB1580 Intelligent Flight Battery, 30% – 95% charge)
8 – 9 mins (DB2160 Intelligent Flight Battery, 30% – 95% charge)
Protection Functions
Over-voltage, over-charge, under-voltage and over-temperature protection
Operating Temperature
0° to 40° C
Output Channels
1
Compatible with Intelligent Flight Battery
DB1580 / DB2160 Intelligent Flight Battery
Dimensions
112 mm × 112 mm × 51 mm (without antenna)
120 mm × 112 mm × 101 mm (with antenna)
Weight [1]
630 g
Input
2.7 V – 24 V
Power Consumption
10.48 W (FCC), 8.8 W (SRRC)
Battery Capacity
6500 mAh
Operating Time
5 hours
Operating Frequency
2.4000 – 2.4835 GHz, 5.150 – 5.250 GHz, 5.725 – 5.850 GHz
Effective Signal Range
5 km (SRRC), 4 km (MIC/KCC/CE), 8 km (FCC)
(In an interference-free, unobstructed environment, flight altitude 2.5 m)
Charging Time
2.5 hours (30 W recharge)
Ingress Protection Rating
IP55
Supports Satellite Systems
GPS: L1/L2/L5
BeiDou: B1I/B2I/B3I/B1C/B2A/B2B
Galileo: E1/E5a/E5b/E6
GLONASS: G1/G2
QZSS: L1CA/L2C/L5
L-BAND
Dimensions
345 mm × 244 mm × 300 mm
Weight [1]
3.77 kg (including packaging)
Power Consumption
7 W
Battery Capacity
6500 mAh
Operating Time
7 hours
Operating Frequency
Broadcast mode:
O4: 2.4G/5.8G
Effective Signal Range
FCC: 15 km
SRRC: 12 km
CE/JP: 8 km
Charging Time
2.5 hours (30 W recharge)
Ingress Protection Rating
IP67
Positioning Accuracy [7]
PPP Satellite Service Accuracy:
Convergence Time: 20 min
Horizontal: 30 cm (RMS)
Elevation: 40 cm (RMS)
Network RTK Calibration:
Horizontal: 0.8 cm + 1 ppm (RMS)
Vertical: 1.5 cm + 1 ppm (RMS)
1 ppm: For every 1 km increase between the aircraft and the base station, the accuracy worsens by 1 mm. For example, if the aircraft is 1 km away from the base station, the accuracy is 1.1 cm.
[2] The effective spray width of the spraying system depends on the actual working scene.
[3] Working height is 3 m, disc rotation speed is 1100 rpm, uniformity requirement (CV<30%) measured broadcast width is 10 m. The faster the disc rotation speed, the higher the flight altitude, the larger the broadcast width.
[4] Includes the weight of ropes and hooks. Measured at sea level, the DJI Agriculture App will intelligently recommend the loading weight based on the current state of the aircraft, environmental conditions, and operational tasks. The maximum weight of the loaded material should not exceed the recommended value, as it may affect flight safety.
[5] The effective working range of sensing distance, obstacle avoidance, and bypassing capabilities may vary due to different environmental lighting, rain, fog, and the material, location, and shape of the subject object. The downward sensing is used to assist in terrain-following altitude flight, while sensing in other directions is used for obstacle avoidance. Except for scenes without linear obstacles, if a collision occurs at speeds up to 13.8 m/s resulting in aircraft damage, responsibility can be determined through log analysis, and the aircraft may be eligible for free warranty if non-human causes are identified. If there are linear obstacles like wires or guy wires on power poles, please mark them as obstacles; otherwise, failure to bypass them will be the customer’s responsibility.
Note:1. The downward perception is used to assist terrain-following altitude flight. If a collision with an obstacle occurs below, it is considered the customer’s responsibility.2. Due to the performance limitations of the safety system, the aircraft cannot actively avoid moving objects. Accidents in such scenes are considered the customer’s responsibility.
[6] Sea level height, environmental temperature between 15-40 degrees Celsius, time to charge the battery from 30% to 95%; fast charging is supported when the battery cell temperature is within the range of 15-75 degrees Celsius; charging time varies depending on input power, ASL, initial charge level, and other factors.
[7] Positioning accuracy and reliability are affected by various factors, including equipment tilt, signal obstruction, multipath, number of satellites, geometric distribution, and atmospheric conditions. It is recommended to set up the equipment in open scenes, away from electromagnetic interference and multipath environments.
