DJI AGRAS T25P
Fly Solo.
From $21,955 CAD
The DJI Agras T25P drone retains its compact, foldable design, featuring 20 kg spraying, an upgraded 25 kg high-precision screw feeder spreading system 4.0, and Safety System 3.0. It excels in aerial mapping and plant protection, offering flexible operations and convenient mobility, making it ideal for solo operations.
Compact and Efficient
20 kg spraying
25 kg spreading
Fully Automatic Operation
One-Click Takeoff
Intelligent Obstacle Bypassing
Automatic Aerial Mapping
Flexible Operations
Foldable and Easy to Transport
Optional Four-Sprinkler Design For Reverse Directional Spray During Flight
Spreading System 4.0
Various Granular Compatibility
Wide Spreading Width, High Precision
Signal Stability
Quad-Antenna O4 Video Transmission
Safety System 3.0
Millimeter-Wave Radars
Tri-Vision System
Night Vision Color FPV Camera
A Drone For
Solo
Operations
Agras T25P features a foldable design and a lightweight body tailored for solo operations, ensuring flexible mobility and easier takeoff and landing.
A Drone For
Solo
Operations
Agras T25P features a foldable design and a lightweight body tailored for solo operations, ensuring flexible mobility and easier takeoff and landing.
Multiple Applications
Field
Spraying
Mountain
Spraying
Field
Spreading
Feed
Spreading
Spraying System
Efficient operation,
Outstanding
performance.
The dual atomization spraying system delivers a high flow rate of 16 liters per minute (with 2 sprinklers), ensuring fine and even droplets without leakage. An additional pair of centrifugal sprinklers can be added, increasing the flow rate to 24 liters per minute (with 4 sprinklers), suitable for operations demanding high-volume.

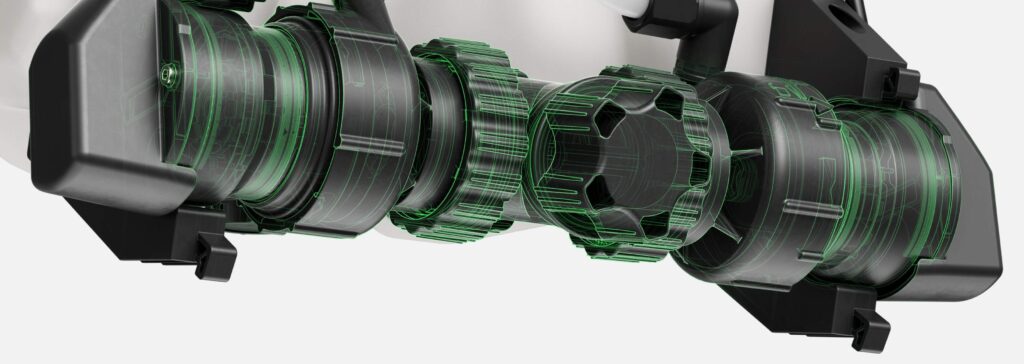

Magnetic Drive Impeller Pump
Liquid is completely isolated from the motor, ensuring zero corrosion, exceptional durability, quick disassembly, and convenient cleaning.

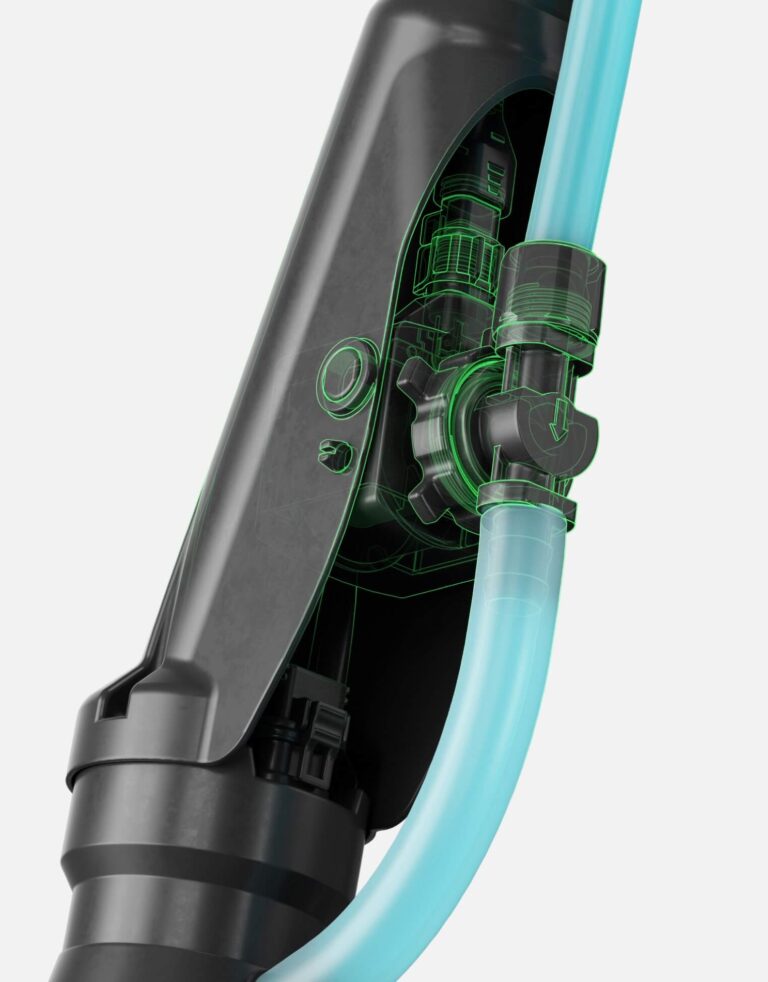

Solenoid Valves
Precision starting and stopping eliminates leaking
Dual Atomizing
Centrifugal Sprinklers
A dual atomizing spray disc structure increases its lifespan by 66% and provides more uniform droplet sizes, for better spray effect.
Speading System
High Precision Flow,
Multiple Spreading Scenarios

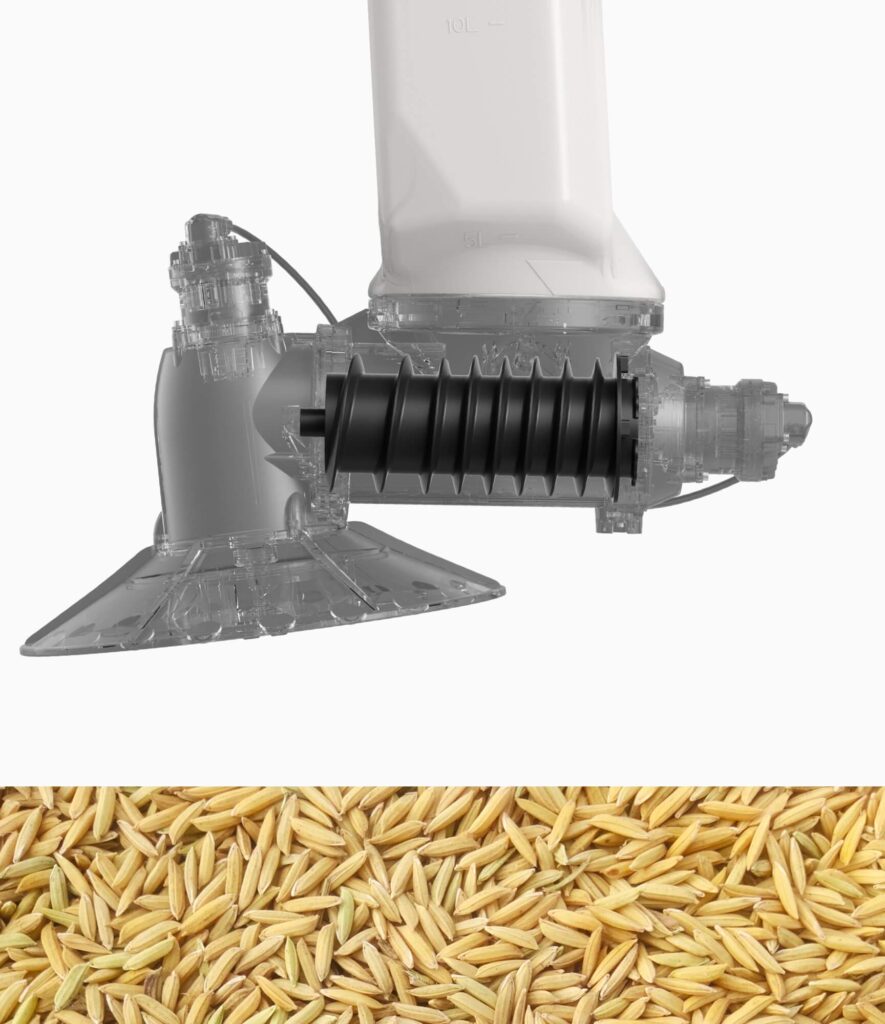

The T25P spreading system offers an 8 m spreading width and features a replaceable screw feeder for doubled flow precision and enhanced adaptability, ideal for fields, mountains, aquaculture, and more.
Adaptable to Various Granulars

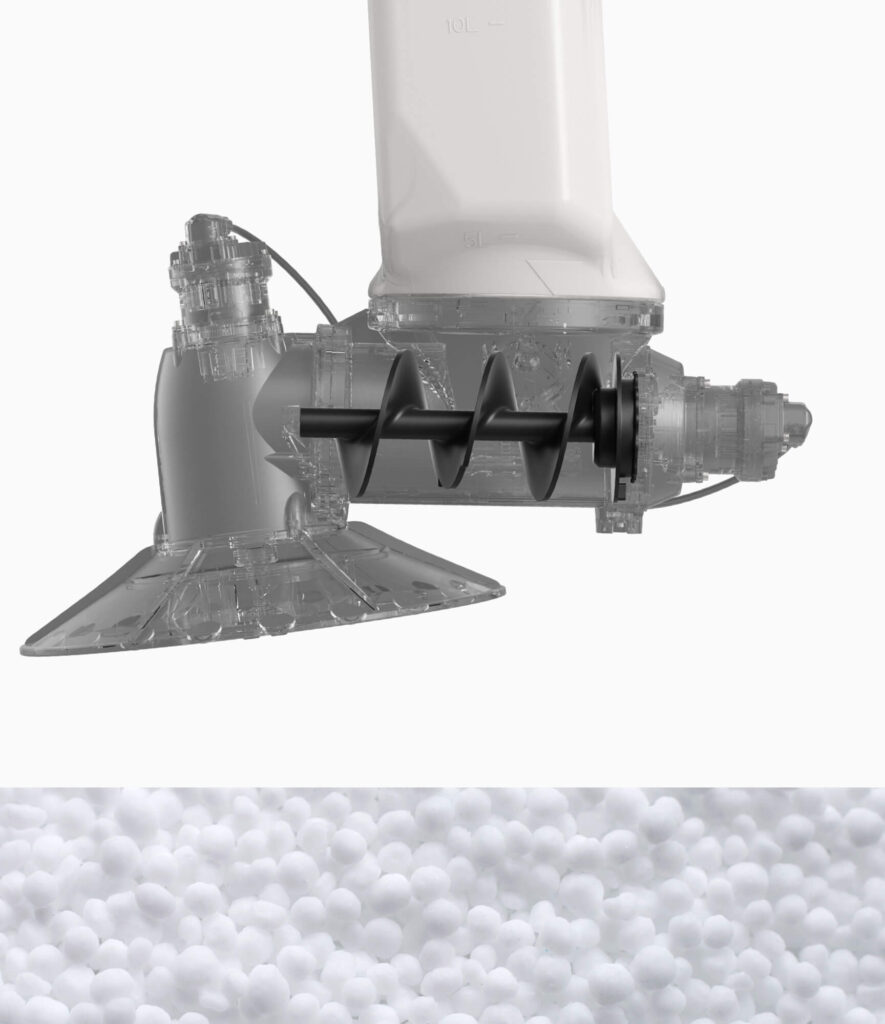

Large Feeder
Suitable for granulars such as fertilizers, wheat seeds, granular fungicides, feed, etc.
Recommended application rate: 75-750 kg per hectare.
Recommended particle size: 0.5-10 mm

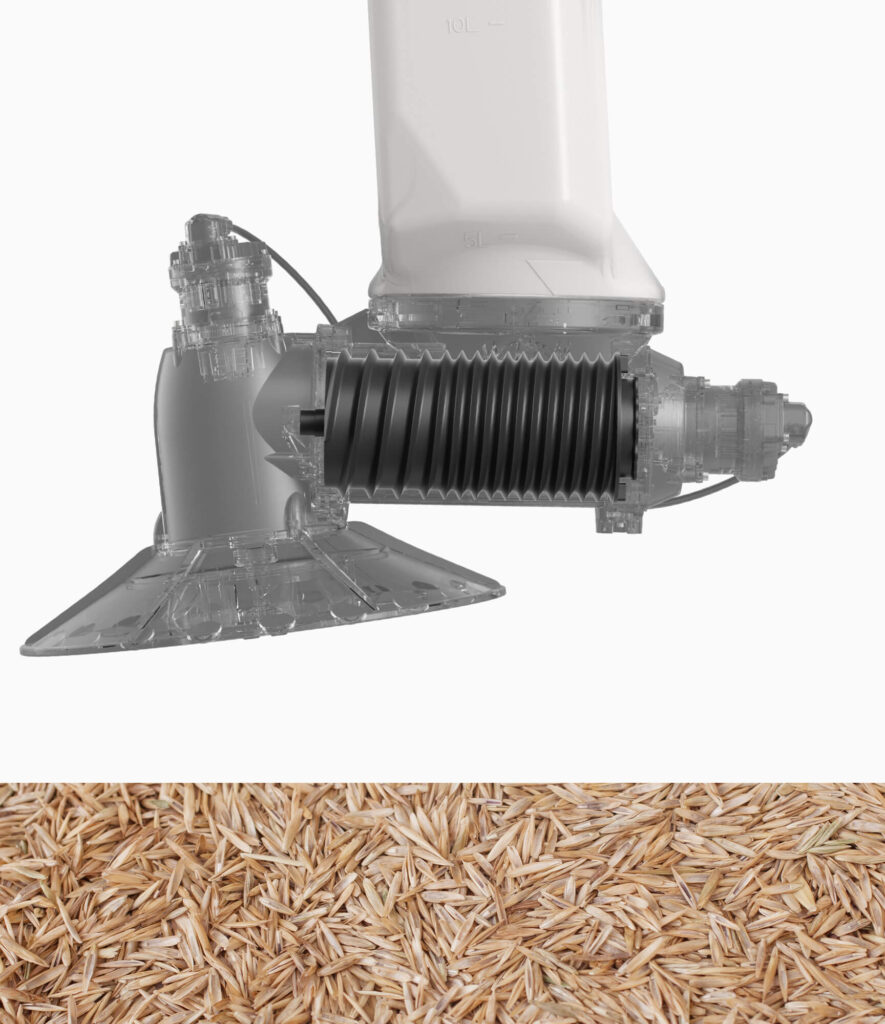

Medium Feeder
Suitable for granulars such as rice seeds.
Recommended application rate: 22.5-120 kg per hectare.
Recommended particle size: 4-6 mm
Small Feeder
Suitable for granulars such as rapeseed, granular herbicides, grass seeds, granular insecticides, etc.
Recommended application rate: 3-22.5 kg per hectare.
Recommended particle size: 0.5-4 mm
Safety System
Powerful Awareness for
Comprehensive Safety
The T25P's upgraded Safety System 3.0 features millimeter-wave radar, a 10x increase in avionics computing power, and a 60 m tri-vision sensor system for enhanced Terrain Following and obstacle avoidance.
Obstacle Avoidance
Safety System 3.0 helps T25P detect poles and trees, allowing for confident obstacle avoidance. Low-reflective obstacles like guy wires should still be marked in pre-planning to ensure safer flights.
Virtual Gimbal
T25P introduces an industry-first virtual gimbal, utilizing a fisheye lens and electronic stabilization algorithms to achieve electronic anti-shake, resulting in smoother footage.
Night Vision Color FPV Camera
T25P is equipped with night vision color FPV camera and a 75-watt night navigation lights, allowing clear visibility of obstacles like poles and wires in dim conditions. It offers a viewing distance of up to 25 m, illuminating your night flight path.

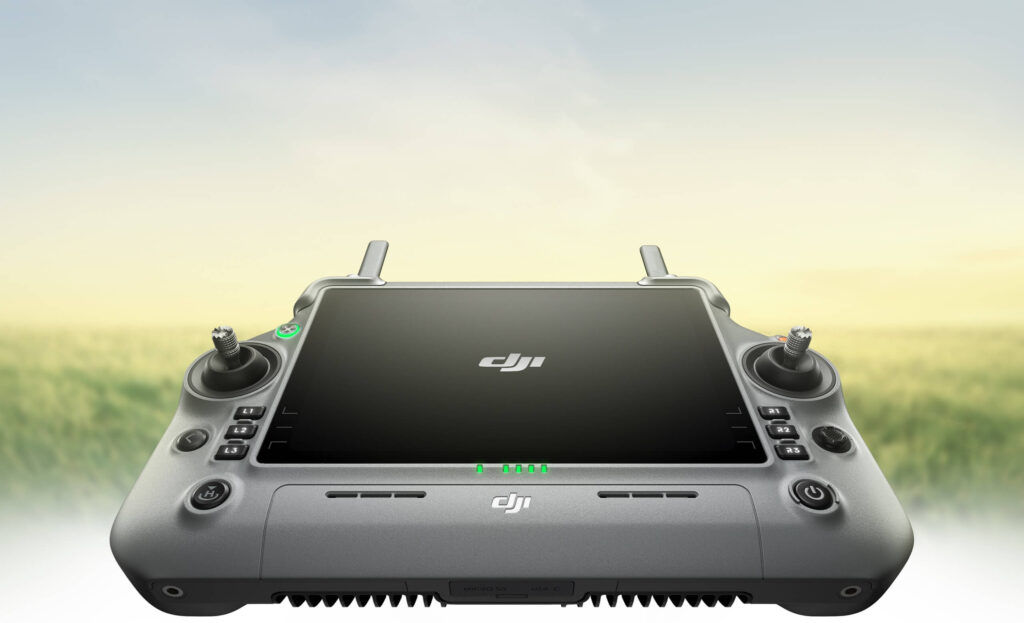

DJI RC Plus
Wide Screen, High Brightness, Easy Control
DJI RC Plus features a 7-inch high-brightness screen that is 16% brighter for clear visibility under sunlight. Both internal and external battery life are extended by 30 minutes. New backlit buttons enhance nighttime operation, and customizable physical buttons offer flexible control.
DJI RC Plus
Wide Screen, High Brightness, Easy Control
DJI RC Plus features a 7-inch high-brightness screen that is 16% brighter for clear visibility under sunlight. Both internal and external battery life are extended by 30 minutes. New backlit buttons enhance nighttime operation, and customizable physical buttons offer flexible control.
High Efficiency Mapping
One Click Takeoff, Easy HD
Map Generation
Field Mapping
Mapping 13.3 hectares of fields in a single flight. Intelligently detect field and obstacle boundaries, enabling one-click takeoff and fully automatic operations. A super-resolution algorithm ensures clearer maps.
Orchard Mapping
Mapping 5.33 hectares of orchards in a single flight. Supports Orchard Mode 4.0, enabling more features.
Transmission System
Seamless Signal
Stability
O4 Transmission
An upgraded transmission algorithm enhances the range while maintaining smooth and stable visuals for consistent performance.
D-RTK 3 AG (Optional)
Enabling plug-and-play centimeter-level positioning without the need to configure coordinates. It ensures precision across the entire operation.
RTK High-Precision Positioning Module
Use in conjunction with the remote controller and smartphone for precise location marking.
O4 Relay (Optional)
A Relay can ensure smooth operations in scenarios that have signal interference.

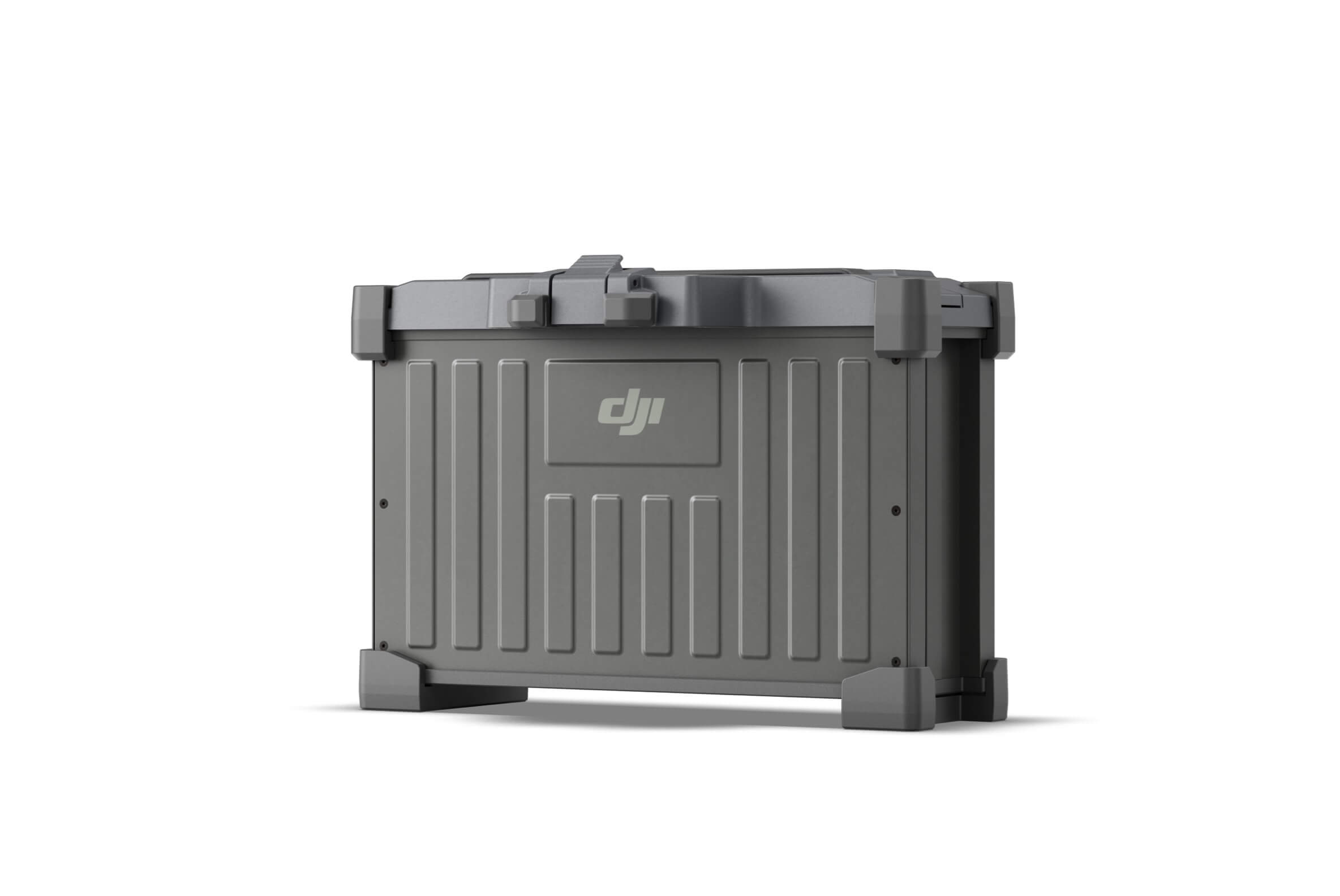

DB800 Intelligent Flight Battery
Capacity: 15.5 Ah
Warranty: 1,500 charge cycles

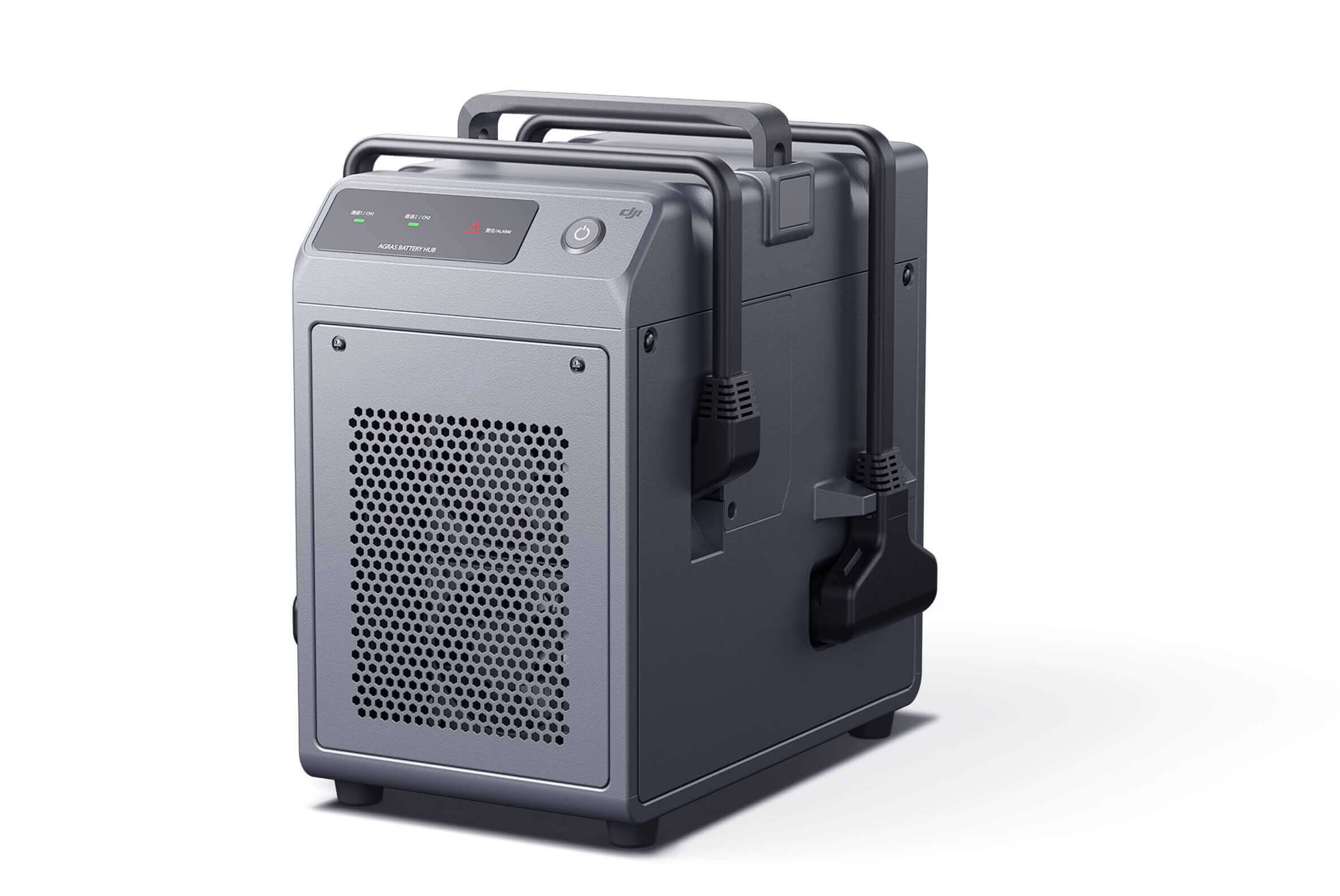

C8000 Intelligent Power Supply
7200 W fast charging
Dual-channel alternation charging
Power-adaptative protection
Smart Agriculture
Ecosystem
With the DJI SmartFarm Web and the new Mavic 3M surveying drone, you can achieve smart agriculture solutions such as automatic field patrols, land leveling monitoring, seedling detection, growth analysis, and prescription map variable operations. Based on crop growth conditions and farmland prescription maps, agricultural drones can perform precise variable operations, such as variable fertilization for rice, variable chemical control for cotton, and variable nutrient solutions for soybeans and corn.
Which Package Suits You Best?
DJI Agras T100
Spraying Payload: 100 L [1]
Flow Rate: 30 L/min (Standard 2 sprinklers)
Flow Rate: 40 L/min (Optional 4 sprinklers)
Dual Atomization Centrifugal Sprinklers: 50-500 μm[9]
Optional Water-Cooled Mist Sprinklers: 50-500 μm[23]
DJI Agras T70P
Spraying Payload: 70 L [1]
Flow Rate: 30 L/min (Standard 2 sprinklers)
Flow Rate: 40 L/min (Optional 4 sprinklers)
Dual Atomization Centrifugal Sprinklers: 50-500 μm[9]
Optional Water-Cooled Mist Sprinklers: 50-500 μm[23]
Recommended Spray Width: 7 m[8]
DJI Agras T25P
Spraying Payload: 20 L [1]
Flow Rate: 16 L/min (Standard 2 sprinklers)
Flow Rate: 24 L/min (Optional 4 sprinklers)
Dual Atomization Centrifugal Sprinklers: 50-500 μm[9]
Recommended Spray Width: 5 m[8]
Spreading Payload: 150 L[3] (100 kg[1])
Max Flow Rate: 400 kg/min[4]
Effective Spreading Width: 10 m[10]
Spreading Payload: 100 L[24] (70 kg[1])
Max Flow Rate: 400 kg/min[4]
Effective Spreading Width: 10 m[10]
Spreading Payload: 30 L[26] (25 kg[1])
Max Flow Rate: 190 kg/min[4]
Effective Spreading Width: 8 m[10]
Paylaod Capacity: 100 kg[5]
Real-Time Weighing
Automatic Balance Control
Loading and Unloading Points by Mobile
Paylaod Capacity: 65 kg[25]
Real-Time Weighing
Automatic Balance Control
Loading and Unloading Points by Mobile
Not Supported
LiDAR
Penta-Vision System
Millimeter-Wave Radars
Tri-Vision System
Millimeter-Wave Radar
Tri-Vision System
Millimeter-Wave Radar
Real-Time LiDAR Point Cloud Display
Obstacle Detection
AR Display for Utility Pole, Vehicles, and Obstacles
Automatic Obstacle Position Memory
Terrain Following Without Aerial Mapping
Obstacle Detection
AR Display for Utility Pole, Vehicles, and Obstacles
Automatic Obstacle Position Memory
Terrain Following Without Aerial Mapping
Intelligent Obstacle Bypassing
Terrain Following Without Aerial Mapping
Ultra-Fast Charging
DB2160 Intelligent Flight Battery
D14000iE Multifunctional Inverter Generator
Ultra-Fast Charging
DB1580 Intelligent Flight Battery
DB2160 Intelligent Flight Battery
D14000iE Multifunctional Inverter Generator
Ultra-Fast Charging
DB800 Intelligent Flight Battery
D6000i Multifunctional Inverter Generator
Get In Touch
Have a question? Ready to schedule a demo or get a quote?
We’re here to help! Reach out to us today.
Specs
Weight
26 kg (spraying without battery)
33 kg (spraying with battery)
Max Takeoff Weight [1]
Max takeoff weight for spraying: 53 kg
Max takeoff weight for spreading: 60 kg
Max Diagonal Wheelbase
1970 mm
Dimensions
Spraying:
2650 × 2700 × 820 mm (arms and propellers unfolded)
1520 × 1580 × 820 mm (arms unfolded and propellers folded)
1120 × 700 × 850 mm (arms and propellers folded)
Spreading:
2650 × 2700 × 850 mm (arms and propellers unfolded)
1520 × 1580 × 850 mm (arms unfolded and propellers folded)
1120 × 700 × 850 mm (arms and propellers folded)
Hovering Accuracy Range (with strong GNSS signal)
RTK enabled:
Horizontal: ±10 cm, Vertical: ±10 cm
RTK disabled:
Horizontal: ±60 cm, Vertical: ±30 cm
Max Configurable Flight Radius
2000 m
Operating Temperature
0° to 40° C
Max Wind Resistance
Level 3 wind (<6 m/s)
Stator Size
100 × 28 mm
KV
59 RPM/V
Material
Nylon carbon fiber
Dimensions
50 in
Quantity
4
Material
Plastic (HDPE)
Volume
20 L
Operating Payload
20 kg
Model
LX07550SX
Quantity
Standard Configuration 2
Nozzle Distance
1420 mm (Rear Nozzles)
Droplet Size
50–500 μm
Effective Spray Width [2]
4–7 m (at a height of 3 m above the crops)
Type
Impeller Pump (Magnetic Drive)
Quantity
2
Max Flow Rate
16 L/min (2 nozzles)
24 L/min (4 nozzles)
Compatible Material Diameter
0.5–5 mm dry granules
Spreading Tank Volume
30 L
Spreader Structure Type
Centrifugal Disc
Discharge Structure Type
Feeder Feeding
Max Discharge Rate
190 kg/min (compound fertilizer)
Max Load Inside the Spreading Operation Box
25 kg
Effective Spreading Width [3]
3–8 m
Millimeter-Wave Radar EIRP
< 20 dBm (NCC/MIC/KC/CE/FCC)
Operating Temperature
0° to 40° C
Operating Environment
Adequate light and discernible surroundings
Operating Frequency
24.05–24.25 GHz (NCC/FCC/MIC/KC/CE)
Field of View (FOV)
Front phased array digital radar: Horizontal 360°, Vertical ±45°, Upper ±45° (cone)
Rear phased array digital radar: Vertical 360°, Horizontal ±45°
Tri-camera vision system: Horizontal 90°, Vertical 180°
Range [4]
≤ 60 m
Effective Safe Obstacle Avoidance Speed [5]
≤ 10 m/s
Effective Obstacle Avoidance Height
≥ 1.5 m
Model
TKPL 2
Screen
7-inch LCD touchscreen; resolution: 1920 × 1200; brightness: 1400 cd/m²
Storage Temperature Range
Less than one month: -30° to 45° C (-22° to 113° F)
One to three months: -30° to 35° C (-22° to 95° F)
Three months to one year: -30° to 30° C (-22° to 86° F)
Charging Temperature
5° to 40° C (41° to 104° F)
Internal Battery Runtime
3.8 hours
External Battery Runtime
3.2 hours
Charging Type
Recommended: locally certified USB-C charger, max 65 W power, max 20 V voltage (e.g., DJI 65W Portable Charger)
Charging Time
2 hours for internal battery or internal + external battery (when remote controller is powered off and using a standard DJI charger)
Weight
Approx. 6.6 kg
Capacity
15,500 mAh
Nominal Voltage
52.22 V
Dimensions
300 × 280 × 230 mm
Weight
11.5 kg
Input
100–240 Vac
Output
Output Voltage: 59.92 V
Output Current: 100 A max
Charging Time [6]
Fully charges a battery in 9 to 12 minutes (DB800 Intelligent Flight Battery)
Protection Functions
Over-voltage, over-charge, under-voltage, and over-temperature protection
Charging Safety
AC wire protection, power wire protection, and charge connector protection
[2] The effective spray width of the spraying system depends on the actual working scene.
[3] The effective spreading width is measured at a flight altitude of 3 m, and the actual operation is related to the disc rotation speed, material type, material mu usage, and site environment.
[4] The observation distance of the safety system 3.0 varies due to different environmental light, rain, Fog, and the material, Location, and shape of the subject object.
[5] Except for linear obstacle scenes, damage to the aircraft due to obstacle avoidance failure within 10 m/s can be analyzed through log responsibility analysis, and non-human causes can be repaired for free; if there are wires, guy wires on Power Poles, and other linear obstacles, please mark them as obstacles, otherwise, failure to bypass obstacles will be the customer’s responsibility.
Note:1. The downward perception is used to assist terrain-following altitude flight. If a collision with an obstacle occurs below, it is considered the customer’s responsibility.2. Due to the performance limitations of the safety system, the aircraft cannot actively avoid moving objects. Accidents in such scenes are considered the customer’s responsibility.
[6] Sea level height, environmental temperature between 15-40 degrees Celsius, time to charge the battery from 30% to 95%; fast charging is supported when the battery cell temperature is within the range of 15-75 degrees Celsius; charging time varies depending on input power, ASL, initial charge level, and other factors.
